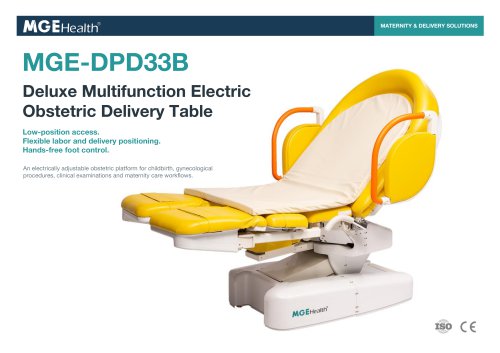

MGE Health' MATERNITY & DELIVERY SOLUTIONS MGE Health' MATERNITY & DELIVERY SOLUTIONS MGE-DPD33BDeluxe Multifunction Electric Obstetric Delivery Table Low-position access. Flexible labor and delivery positioning. Hands-free foot control. An electrically adjustable obstetric platform for childbirth, gynecological procedures, clinical examinations and maternity care workflows.

CLINICAL POSITIONING & WORKFLOW One platform for labor, delivery and recovery Illustrative positioning photographs show the flexible table architecture across maternity-care workflows. SUPINE / RECOVERY POSITION PRONE / ALL-FOURS SUPPORT LATERAL SUPPORT POSITION OBSTETRIC LEG-SUPPORT POSITION LATERAL RECUMBENT POSITION SEMI-SEATED / CHAIR POSITION Images illustrate product positioning possibilities. Clinical use and patient positioning are determined by the responsible care team. MEDIGE INTERNATIONAL INDUSTRIES CO., LTD.

POSITIONING & CONTROL Foot-operated control provides hands-free operation; selected auxiliary sections are manually adjusted. MINIMUM HEIGHT ELECTRIC BACKREST 360 ± 10 mm ELECTRIC HEIGHT TRAVEL ELECTRIC SEAT SECTION ELECTRIC MOVEMENTS ■ Height lift and lowering ■ Left and right foot-support lateral swing (0°-33°) MANUAL / GAS-SPRING ASSIST Foot-support folding, leg-board folding, side handrail rotation, and adjustable tray mechanisms. MGEHealth® MEDIGE INTERNATIONAL INDUSTRIES CO., LTD. www.medicalmge.com

PATIENT SUPPORT & MATERIALS Comfort-oriented surfaces and functional details Close-up photographs demonstrate accessible components, supporting structures and adjustable cushions. 45# Steel Frame Structural steel body with a powder-coated finish. ABS Base Cover Surface with anti-glare treatment, designed for routine cleaning. 304 Stainless Steel Powder-coated structure with selected 304 stainless-steel components. Three-Layer Cushion Layered construction for cushioning and thermal comfort. CLINICAL FUNCTIONAL DETAILS • Rotatable newborn receiving tray for side-care access • Rotating side handrails...

TECHNICAL SPECIFICATIONS Specification ranges and tolerances are reproduced from MGE-DPD33B Technical Specification V1.1. PARAMETER SPECIFICATION PARAMETER SPECIFICATION Overall Bed Size 2058 x 1080 x 550 mm (±10 mm) Foot-support Folding 0° to 90° ± 2° (gas-spring assist) Minimum Height 550 ± 10 mm Leg-board Folding 75° ± 2° (manual) Electric Height Travel 360 ± 10 mm Side Handrail Rotation 180° (manual) Backrest Up / Down +60° ± 2° / -10° ± 2° Tray-support Translation 150 ± 3 mm (manual) Seat Section Up / Down +25° ± 2° / -25° ± 2° Tray-support Rotation 90° ± 3° (manual) Right Foot-support Swing...

ELECTRICAL & SITE REQUIREMENTS Relevant technical data for hospital engineering, installation and procurement review. ELECTRICAL & STRUCTURAL SPECIFICATION ENVIRONMENTAL CONDITIONS RANGE Mains Power AC 100-240 V, 50/60 Hz Operating Temperature 10°C to 40°C Plug Options US / EU / market-specific Operating RH 30% to 75% Drive System Linear electric motor / electromechanical Operating Pressure 70-106 kPa Control System Foot controller Storage Temperature -40°C to 55°C Main Frame 45# steel Storage RH <80%, non-condensing External Materials Powder-coated steel / selected 304 SS Storage Pressure 50-106...

CONFIGURATION & PROJECT SUPPORT Standard supply scope and project documentation Clear inclusions and shipping specifications support procurement and tender comparison. STANDARD CONFIGURATION QUANTITY / DETAILS Main Delivery Table Auxiliary Board Stainless-Steel Waste Basin Foot Controller Power Cord User manual, quality certificate, packing list OPTIONAL ACCESSORIES Specified separately according to the project and confirmed order configuration. PACKAGING / SHIPPING 1 wooden case 2170 × 1030 × 910 mm Total gross weight: 330 kg MEDIGE INTERNATIONAL INDUSTRIES CO., LTD. No. 380 Fengxin Road, Yuhang...
