CardioScreen® 1000

Product catalog summary

Overview: The CardioScreen® 1000 is a computer-based, non-invasive patient monitor designed for real-time haemodynamic monitoring using Impedance Cardiography (ICG). It is compact, easy-to-use, and integrates innovative algorithms to provide key haemodynamic parameters continuously.

Specifications: The device uses bioimpedance-plethysmography with a measuring current of 1.5 mAeff at 86 kHz. It operates within a basic impedance range of 5 – 55 Ohm and measures impedance changes of ± 1 Ohm. The device is USB powered, with dimensions of 63 x 140 x 30 mm and weighs approximately 350 g. It is classified as a class IIa medical device under EU standards.

Applications: The CardioScreen® 1000 is suitable for use in operating rooms, intensive care units, emergency departments, and intermediate care. It supports haemodynamic monitoring, fluid management, hypertension management, and pacemaker adjustment. The device aids in clinical decision-making by monitoring haemodynamic changes, optimizing treatment, and identifying oedema development.

Haemodynamic Monitoring: The device measures parameters such as stroke volume, cardiac output, and thoracic fluid content. It supports fluid management through the Passive Leg Raising Test and Fluid Challenge, helping clinicians evaluate fluid responsiveness and decide on further fluid administration.

Hypertension Management: The CardioScreen® 1000 assists in identifying haemodynamic modulators contributing to hypertension, allowing for tailored medication strategies using beta-blockers, ACE inhibitors, diuretics, and other drugs.

CRT Device Optimization: The device aids in optimizing AV and VV delays in patients with Cardiac Resynchronization Therapy (CRT) devices, ensuring individual settings for improved haemodynamic performance.

Available Parameters: The device measures flow (Heart Rate, Stroke Volume/Index, Cardiac Output/Index), contractility (Velocity Index, Acceleration Index, Heather Index, Pre-Ejection-Period, Left Ventricular Ejection Time, Systolic Time Ratio, Corrected Flow Time), fluid (Thoracic Fluid Content), and vascular (Systemic Vascular Resistance) parameters.

Standards and Compliance: The CardioScreen® 1000 complies with EN 60 601-1, EN 60 601-1-2, and EN 55011 class B standards, ensuring safety and performance.

Catalog excerpts

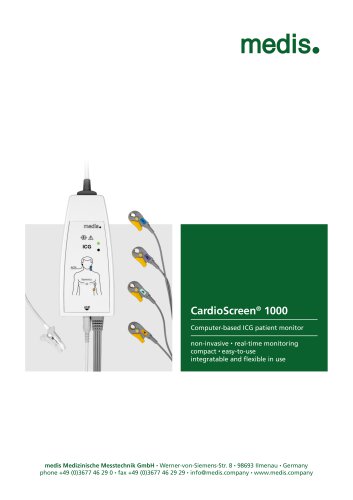

CardioScreen® 1000 Computer-based ICG patient monitor non-invasive • real-time monitoring compact • easy-to-use integratable and flexible in use

Open the catalog to page 1

IMPEDANCE CARDIOGRAPHY (ICG) Changes in volume and velocity of blood in the aorta cause variations in the thoracic bio-impedance which is measured and displayed as the ICG waveform. Innovative algorithms are applied to this signal to provide key haemodynamic parameters noninvasively and continuously. ACM arterial compliance modulation By means of our unique ACM-Technology in combination with the new 4TECT Sensor-Application, the accuracy of the measuring method has increased considerably and its application has become even more simple – a new generation of Impedance Cardiography. Beginning of...

Open the catalog to page 2

Selection of Available Parameters Flow HR Heart Rate Stroke Volume/Index Cardiac Output/Index Velocity Index Acceleration Index Heather Index Left Ventricular Ejection Time Systolic Time Ratio Corrected Flow Time Thoracic Fluid Content Systemic Vascular Resistance Technical Data Impedance Cardiography (ICG) Method Measuring current Basic impedance Impedance change ± 1 Ohm (basic impedance)) ± 4 mOhm (impedance change) ± 3 1/min, 40 – 200 1/min (heart rate) General Information Power supply

Open the catalog to page 3
