Y-509W Five Liter Oxygen Concentrator

Product catalog summary

Product Overview:
The Y-509W Medical Oxygen Concentrator is designed for continuous oxygen output with a rated flow of 5L/min and an oxygen concentration of 93±3% (V/V). It features a compact design with dimensions of 31*27*55cm and a net weight of 18kg±10%.

Specifications:

Oxygen Flow Rate: Adjustable from 0.5 to 5L/min using a mechanical knob.
Operation Noise: Sound pressure level is ≤60dB(A) at 3L/min and 5L/min, with a sound power level of ≤68dB(A), compliant with YY9706.269-2021 standards.
Oxygen Outlet Pressure: Ranges from 20 to 70kPa.
Rated Input Power: 480VA.
Molecular Sieve: Non-removable by the user, made of pure lithium-based zeolite weighing 1.4kg±5%.
Filters: User-removable and replaceable.
Remote Control: Infrared remote control functionality.
Nebulization Function: Available.

Core Hardware Parameters:

Compressor: Startup input power ≤380W, rated rotational speed ≥1360rpm, working pressure 1.85kgf/cm², rated current ≤1.8A, and rated voltage 110V 60Hz. Includes overpressure relief valve and overheat protection.
Oxygen Control Valve: Pilot-operated low-noise solenoid valve.

Standard Accessories:

Power cord
Remote control
Manual
Nasal cannula
Primary filter
Fuses
Nebulizer
Oxygen mask
Humidifier bottle

Packaging: Customized according to customer requirements, with package dimensions of 42*35*66cm and a gross weight of 20kg±10%.

Catalog excerpts

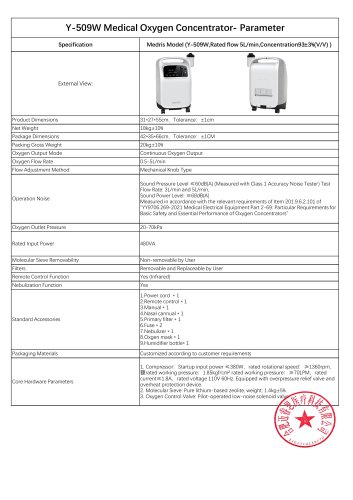

Y-509W Five Liter Oxygen Concentrator -1

Y-509W Medical Oxygen Concentrator- Parameter Specification Medris Model (Y-509W,Rated flow 5L/min,Concentration93±3%(V/V) ) External View: Product Dimensions Package Dimensions Packing Gross Weight Oxygen Output Mode Continuous Oxygen Output Oxygen Flow Rate Flow Adjustment Method Mechanical Knob Type Operation Noise Sound Pressure Level ≤60dB(A) (Measured with Class 1 Accuracy Noise Tester) Test Flow Rate: 3L/min and 5L/min, Sound Power Level: ≤68dB(A) Measured in accordance with the relevant requirements of Item 201.9.6.2.101 of "YY9706.269-2021 Medical Electrical Equipment Part 2-69: Particular Requirements for Basic Safety and Essential Performance of Oxygen Concentrators" Oxygen Outlet Pressure Rated Input Power Molecular Sieve Removability Removable and Replaceable by User Remote Control Function Nebulization Function Standard Accessories Packaging Materials Customized according to customer requirements Core Hardware Parameters 1. Compressor：Startup input power ≤380W，rated rotational speed：≥1360rpm，额rated working pressure：1.85kgf/cm² rated working pressure：≥70LPM，rated current≤1.8A，rated voltage 110V 60Hz. Equipped with overpressure relief valve and overheat protection device. 2. Molecular Sieve: Pure lithium-based zeolite, weight: 1.4kg±5%. 3. Oxygen Control Valv

Open the catalog to page 1

All MEDRIS Medical Group catalogs and technical brochures

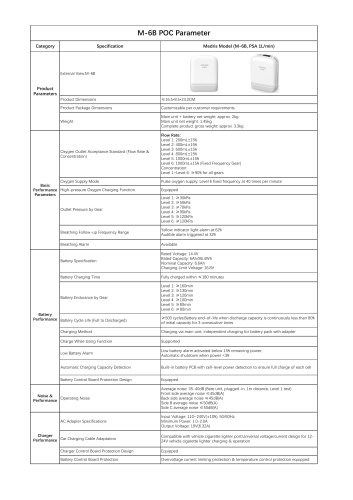

Portable oxygen concentrator
