Portable Bladder Scanner PBS V5.1

Product catalog summary

Overview: The PBS V5.1 Bladder Scanner is a noninvasive, accurate, and reliable medical device designed for ease of use. It features touch screen technology and provides enhanced efficiency for medical personnel by delivering scan results in under 5 seconds with a measurement error within 15%.

Key Features:

Superior Probe Quality: Ergonomic design with IPX4 protection rating, negative pressure design, and ability to withstand drop tests.
Bar Code Scanning: Allows direct reading of patient information.
Evaluation System: Offers pre-scanning display modes (Expert & Easy) and double-checking options for accuracy. The device prompts the best scan location and allows manual correction of bladder border recognition.

Technical Specifications:

Probe Frequency: 2.6 MHz
Volume Range: 0-999 ml
Accuracy: ±15%
Depth: ≥140 mm
Plane: 12/24
Display Mode: Expert/Easy
Continuous Working Time: ≥2 hours
Scan Speed: <5 seconds
Display Screen: 8.4'' TFT-LCD
Storage Capacity: 200 cases
Output Interface: USB Type-C
Network: Bluetooth
Print: Built-in thermal printer
Language: Multiple

Accessories: Includes adaptor, battery charger, batteries, probe, print paper, and optional cart. Comes with a 2-year warranty and an optional 1-year extension.

Contact Information: Mianyang Meike Electronic Equipment Co., Ltd., No.63 Yinping Road, Fucheng District, Mianyang 621000, CN. Tel: +86 816 6355073, Email: [email protected]

Catalog excerpts

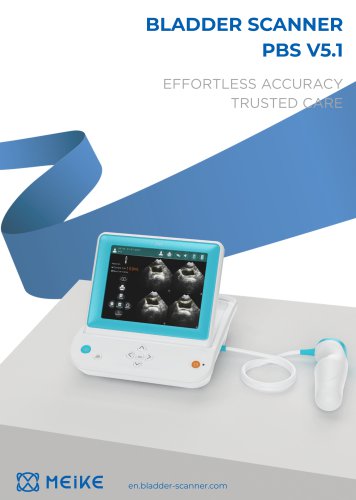

BLADDER SCANNER PBS V5.1 EFFORTLESS ACCURACY TRUSTED CARE

Open the catalog to page 1

Touch screen technology Enhanced Efficiency for Medical Personnel • Scan and calculate results in under 5 seconds • Measurement error within 15% Superior Probe Quality • Ergonomic design • Negative pressure design • Withstand drop test Bar code scanning Scan bar code to read patient information directly

Open the catalog to page 2

• Expert mode: allow users to see the real-time ultrasound imaging • Easy mode: display the bladder simple outline sketch • Best scan location prompt: The device will prompt when the probe is in the best and optimal bladder position after scanning • Bladder border recognition manual correction: Manual contour the scanned grey-scale images to correct

Open the catalog to page 3

Probe Frequency: 2.6 MHz Volume Range: 0-999 ml Accuracy: ±15% Depth: Plane: 12/24 Display Mode: Expert/Easy Continuous working time: Scan Speed: Display Screen: 8.4'' TFT-LCD Storage capacity: 200 cases Output interface: USB Type-C Network: Bluetooth Print: Build-in thermal printer Language: Mult

Open the catalog to page 4

Print Paper Battery Charger 2 Years-warranty 1 Year extension (optional)

Open the catalog to page 5

No.63 Yinping Road, Fucheng District, Mianyang 621000, CN

Open the catalog to page 6

Portable Bladder Scanner PBS V5.1
