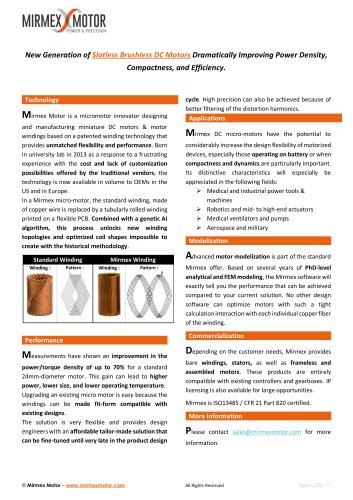

New Generation of Slotless Brushless DC Motors Dramatically Improving Power Density, Compactness, and Efficiency. Mirmex Motor is a micromotor innovator designing and manufacturing miniature DC motors & motor windings based on a patented winding technology that provides unmatched flexibility and performance. Born in university lab in 2013 as a response to a frustrating experience with the cost and lack of customization possibilities offered by the traditional vendors, the technology is now available in volume to OEMs in the US and in Europe. In a Mirmex micro-motor, the standard winding, made of copper wire is replaced by a tubularly rolled winding printed on a flexible PCB. Combined with a genetic AI algorithm, this process unlocks new winding topologies and optimized coil shapes impossible to create with the historical methodology. Standard Winding Winding : Mirmex Winding Winding : Measurements have shown an improvement in the power/torque density of up to 70% for a standard 24mm-diameter motor. This gain can lead to higher power, lower size, and lower operating temperature. Upgrading an existing micro motor is easy because the windings can be made fit-form compatible with existing designs. The solution is very flexible and provides design engineers with an affordable tailor-made solution that can be fine-tuned until very late in the product design © Mirmex Motor – www.mirmexmotor.com cycle. High precision can also be achieved because of better filtering of the distortion harmonics. DC micro-motors have the potential to considerably increase the design flexibility of motorized devices, especially those operating on battery or when compactness and dynamics are particularly important. Its distinctive characteristics will especially be appreciated in the following fields: ➢ Medical and industrial power tools & machines ➢ Robotics and mid- to high-end actuators ➢ Medical ventilators and pumps ➢ Aerospace and military Advanced motor modelization is part of the standard Mirmex offer. Based on several years of PhD-level analytical and FEM modeling, the Mirmex software will exactly tell you the performance that can be achieved compared to your current solution. No other design software can optimize motors with such a tight calculation interaction with each individual copper fiber of the winding. Depending on the customer needs, Mirmex provides bare windings, stators, as well as frameless and assembled motors. These products are entirely compatible with existing controllers and gearboxes. IP licensing is also available for large opportunities. Mirmex is ISO13485 / CFR 21 Part 820 certified. More Information contact [email protected] for more

“Custom-made, AI Built, High Power Density DC Micromotors & Windings that Consistently Beat their Swiss, German and American Equivalents.” ▪ Optimal and unique. Mirmex Motor provides micro motors and windings that are unique and optimal for your own application. You no longer have to compromise on the compelling features that you always dreamed to include in your actuator but could not get from the top vendors who sell on catalog. 100% of our products include a winding tailored only for you. ▪ Compact size and compact cost. For a given torque, the micro motors from Mirmex can be made smaller...
