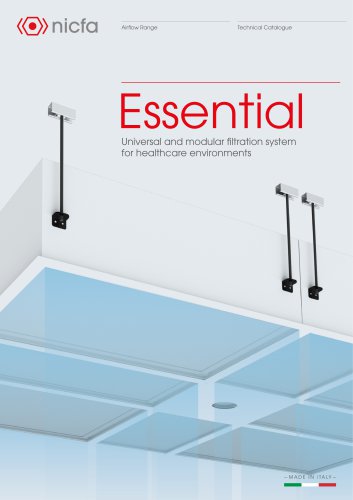

Airflow Range Technical Catalogue Essential Universal and modular filtration system for healthcare environments

Nicfa Airflow Essential

■ UNIVERSAL ADAPTABILITY A system designed to effectively adapt to a wide range of medical requirements, from the simplest settings to the most complex environments. ■ PREMIUM BUILD QUALITY Selected materials and high-quality components ensure robustness, durability and reliable performance over time. ■ INTUITIVE ASSEMBLY A system composed of a limited number of components, designed for quick and intuitive installation, even independently and without the need for specialized skills. ■ MODULARITY AND CUSTOMIZATION Maximum flexibility thanks to a modular structure, customizable on request to meet...

Precision starts from the materials Every component is designed to ensure quality: solid structure, precision finishing and high-efficiency filters for maximum operational reliability. 2. Central aluminium frames 3. Aluminium frame frames 5. Continuity element for surgical lamp 6. Aluminium filter support frame 7. Aluminium mixing chamber casing 8. Galvanised steel hanging bracket Tailored solutions for every environment The configurations shown represent only a portion of the available solutions. The real strength of Nicfa lies in the ability to create custom systems: each laminar flow canopy...

microperforated fabric panel fabric panel Surgical lamp opening DIMENSIONS AND TECHNICAL DRAWINGS DIMENSIONS AND TECHNICAL DRAWINGS qp PRODUCT SPECIFICATIONS (+/- 10%) Description NAF-P02233 Primary air inlets configurable according to the technical requirements of the project ■ DIFFUSER DIAGRAM n. 3 filters 1220 x 610 x 69 H14 Filter Surface Area 2,23 m2 Material Aluminium PRODUCT SPECIFICATIONS (+/- 10%) Description NAF-P02233_SC H14 Filter Surface Area 1,86 m2 Material Aluminium Primary air inlets configurable according to the technical requirements of the project ■ DIFFUSER DIAGRAM n. 2 filters...

microperforated fabric panel microperforated fabric panel Surgical lamp opening DIMENSIONS AND TECHNICAL DRAWINGS DIMENSIONS AND TECHNICAL DRAWINGS qp Primary air inlets configurable according to the technical requirements of the project Primary air inlets configurable according to the technical requirements of the project PRODUCT SPECIFICATIONS (+/- 10%) Description NAF-P02977 ■ DIFFUSER DIAGRAM n.2 filters 1220 x 915 x 69 n.1 filter 1220 x 610 x 69 H14 Filter Surface Area 2,97 m2 Material Aluminium PRODUCT SPECIFICATIONS (+/- 10%) Description NAF-P0297_SC H14 Filter Surface Area 2,60 m2 Material...

microperforated fabric panel DIMENSIONS AND TECHNICAL DRAWINGS PRODUCT SPECIFICATIONS (+/- 10%) Description NAF-P03349 H14 Filter Surface Area 3,35 m2 Material Aluminium microperforated fabric panel Surgical lamp opening Primary air inlets configurable according to the technical requirements of the project DIMENSIONS AND TECHNICAL DRAWINGS PRODUCT SPECIFICATIONS (+/- 10%) Description NAF-P03349_SC H14 Filter Surface Area 2,98 m2 Material Aluminium Primary air inlets configurable according to the technical requirements of the project ■ DIFFUSER DIAGRAM

microperforated fabric panel DIMENSIONS AND TECHNICAL DRAWINGS 2010 Primary air inlets configurable according to the technical requirements of the project -o PRODUCT SPECIFICATIONS (+/- 10%) Description NAF-P04465 SC H14 Filter Surface Area 4,09 m2 Material Aluminium ■ DIFFUSER DIAGRAM n.6 filters 915 x 610 x 69 n.2 filters 610 x 610 x 69

Acotex microperforated fabric panel DIMENSIONS AND TECHNICAL DRAWINGS DIMENSIONS AND TECHNICAL DRAWINGS 2010

Acotex microperforated fabric panel DIMENSIONS AND TECHNICAL DRAWINGS 2590

Primary air inlets configurable according to the technical requirements of the project Primary air inlets configurable according to the technical requirements of the project Acotex microperforated fabric panel Surgical lamp opening Acotex microperforated fabric panel DIMENSIONS AND TECHNICAL DRAWINGS DIMENSIONS AND TECHNICAL DRAWINGS DIFFUSER DIAGRAM DIFFUSER DIAGRAM H14 Filter Surface Area 9,29 m2 H14 Filter Surface Area 8,92 m2

Primary air inlets configurable according to the technical requirements of the project Primary air inlets configurable according to the technical requirements of the project Acotex microperforated fabric panel Acotex microperforated fabric panel DIMENSIONS AND TECHNICAL DRAWINGS DIMENSIONS AND TECHNICAL DRAWINGS DIFFUSER DIAGRAM DIFFUSER DIAGRAM H14 Filter Surface Area 11,24 m2 H14 Filter Surface Area 11,24 m2 HYN048: Aluminium HYN048_AI: AISI 304 Stainless Steel HYN049: Aluminium HYN049_AI: AISI 304 Stainless Steel 23

Primary air inlets configurable according to the technical requirements of the project Primary air inlets configurable according to the technical requirements of the project Acotex microperforated fabric panel Acotex microperforated fabric panel DIMENSIONS AND TECHNICAL DRAWINGS DIMENSIONS AND TECHNICAL DRAWINGS DIFFUSER DIAGRAM DIFFUSER DIAGRAM H14 Filter Surface Area 10,22 m2 Material HYN049: Aluminium HYN049_AI: AISI 304 Stainless Steel H14 Filter Surface Area 10,22 m2 Material HYN050: Aluminium HYN051_AI: AISI 304 Stainless Steel 25

Return and Exhaust Air Columns H -1 DIMENSIONS AND TECHNICAL DRAWINGS DIMENSIONS AND TECHNICAL DRAWINGS Vertical technical element integrated into the AirFlow Essential system, designed to extract air from the operating room and convey it to the recirculation and filtration circuit. Vertical technical element integrated into the AirFlow Essential system, designed to extract air from the operating room and manage both recirculation and exhaust airflow to the outside. PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS • Return air only version • Conveyance to the recirculation circuit • Diffuser in...

About Nicfa Where air becomes protection. At Nicfa, we work to manage an invisible yet essential element. Every system we develop is designed to transform healthcare environments into intelligent, safe spaces, ready to meet the challenges of contemporary medicine — combining technical precision, design vision and constant attention to people. Every Nicfa system is entirely designed and manufactured in Italy, within an integrated supply chain that ensures direct control, ISO 9001-certified quality and operational efficiency. The close connection between design and production translates into efficiency,...
