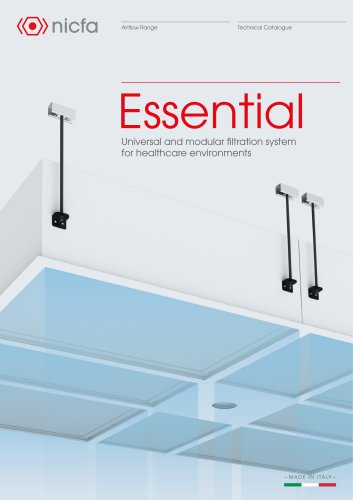

Airflow Range Technical Catalogue Essential Universal and modular filtration system for healthcare environments

Nicfa Airflow Essential

■ UNIVERSAL ADAPTABILITY A system designed to effectively adapt to a wide range of medical requirements, from the simplest settings to the most complex environments. ■ PREMIUM BUILD QUALITY Selected materials and high-quality components ensure robustness, durability and reliable performance over time. ■ INTUITIVE ASSEMBLY A system composed of a limited number of components, designed for quick and intuitive installation, even independently and without the need for specialized skills. ■ MODULARITY AND CUSTOMIZATION Maximum flexibility thanks to a modular structure, customizable on request to meet...

Precision starts from the materials. Every component is designed to ensure quality: solid structure, precision finishing and high-efficiency filters for maximum operational reliability. 1. Acotex support elements COMPONENTS 2. Central aluminium frames 3. Aluminium frame frames 5. Continuity element for surgical lamp 6. Aluminium filter support frame 7. Aluminium mixing chamber casing 8. Galvanised steel hanging bracket Tailored solutions for every environment The configurations shown represent only a portion of the available solutions. The real strength of Nicfa lies in the ability to create...

Code Description Dimensions (mm) Filtered Area (m2) Airflow Rate (m3) HYN015 NAF-P02233 2010 x 1340 x 446 2,23 2.500

Acotex microperforated fabric panel HYN031 Acotex microperforated fabric panel Surgical lamp opening — DIMENSIONS AND TECHNICAL DRAWINGS DIMENSIONS AND TECHNICAL DRAWINGS Primary air inlets configurable according to the technical requirements of the project. PRODUCT SPECIFICATIONS (+/- 10%) ■ DIFFUSER DIAGRAM H14 Filter Surface Area 2,23 m2 H14 Filter Surface Area 1,86 m2 Primary air inlets configurable according to the technical requirements of the project.

Acotex microperforated fabric panel HYN016 Acotex microperforated fabric panel Surgical lamp opening DIMENSIONS AND TECHNICAL DRAWINGS DIMENSIONS AND TECHNICAL DRAWINGS Primary air inlets configurable according to the technical requirements of the project. Primary air inlets configurable according to the technical requirements of the project. H14 Filter Surface Area 2,98 m2 ■ DIFFUSER DIAGRAM n.2 filters 1220 x 915 x 69 H14 Filter Surface Area 2,60 m2 ■ DIFFUSER DIAGRAM n.2 filters 1220 x 915 x 69

HYN017 DIMENSIONS AND TECHNICAL DRAWINGS H14 Filter Surface Area 3,35 m2 HYN026 Acotex microperforated fabric panel - Surgical lamp opening - Primary air inlets configurable according to the technical requirements of the project. DIMENSIONS AND TECHNICAL DRAWINGS H14 Filter Surface Area 2,98 m2 Primary air inlets configurable according to the technical requirements of the project.

HYN040 Acotex microperforated fabric panel DIMENSIONS AND TECHNICAL DRAWINGS DIMENSIONS AND TECHNICAL DRAWINGS Primary air inlets configurable according to the technical requirements of the project. H14 Filter Surface Area 4,47 m2 ■ DIFFUSER DIAGRAM n.6 filters 915 x 610 x 69 n.3 filters 610 x 610 x 69 H14 Filter Surface Area 4,09 m2 ■ DIFFUSER DIAGRAM n.6 filters 915 x 610 x 69 n.2 filters 610 x 610 x 69

DIMENSIONS AND TECHNICAL DRAWINGS DIMENSIONS AND TECHNICAL DRAWINGS H14 Filter Surface Area 5,58 m2 Primary air inlets configurable according to the technical requirements of the project. Primary air inlets configurable according to the technical requirements of the project. H14 Filter Surface Area 5,21 m2 ■ DIFFUSER DIAGRAM n.6 filters 1220 x 610 x 69

DIMENSIONS AND TECHNICAL DRAWINGS DIMENSIONS AND TECHNICAL DRAWINGS Primary air inlets configurable according to the technical requirements of the project. Primary air inlets configurable according to the technical requirements of the project. ■ DIFFUSER DIAGRAM n.4 filters 1220 x 1220 x 69 n.2 filters 1220 x 610 x 69 H14 Filter Surface Area 7,44 m2 H14 Filter Surface Area 7,07 m2 ■ DIFFUSER DIAGRAM n.4 filters 1220 x 915 x 69

Primary air inlets configurable according to the technical requirements of the project. Primary air inlets configurable according to the technical requirements of the project. Surgical lamp opening Acotex microperforated fabric panel Acotex microperforated fabric panel DIMENSIONS AND TECHNICAL DRAWINGS DIMENSIONS AND TECHNICAL DRAWINGS DIFFUSER DIAGRAM DIFFUSER DIAGRAM H14 Filter Surface Area H14 Filter Surface Area

At Nicfa, we work with an invisible yet essential element: air. Every system we develop is designed to transform healthcare environments into intelligent, safe spaces, ready to meet the challenges of modern medicine — combining technical precision, design vision, and a constant focus on people. Every Nicfa system is entirely designed and manufactured in MADE IN ITALY Italy, within an integrated supply chain that guarantees direct control, certified quality and operational efficiency. _ The close connection between design and production results in speed, flexibility and truly customized solutions....

Nicfa Srl Via Vincenzo Stefano Breda 32/5 - 35010 Limena (PD) / IT [email protected]
