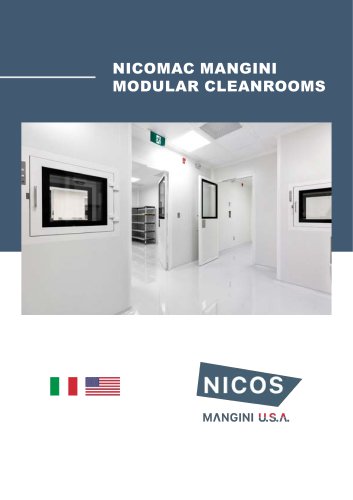

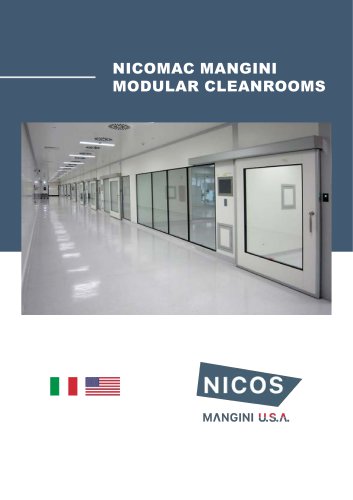

NICOMAC MANGINI MODULAR CLEANROOMS NICOS MANGINI

65 9 countries served patented systems The modular panel system allows maximum architectural design and construction flexibility. Nicos Group services for your project can be modulated and customized according to your needs: • Turn key design and build supply • Full cleanroom design, MEP supply by others • Basic design and cGMP consulting • Architectural turnkey supply (walls, doors, ceilings, accessories) and install. • Modular system material supply and installation supervision Federal Standard 209E Airborne Particulate Cleanliness Classes NUMBER OF PARTICLES PER CUBIC METER BY MICROMETER SIZE...

Project Design Drawings are prepared in house based on existing documents or on-site survey carried-out by Nicos Engineers. Nicos will supply, as standard, the following project drawings: rooms layout, walls front view, ceiling layout in three different issues (for customer comments and approval, for construction and as built). The installation teams are certified by Nicos GROUP through continuous checks on competence, efficiency, professionalism, safety and through constant training. During the design, construction and installation, our expertise and the QA Nicomac certified quality system for...

Floor to wall connections Epoxy resin floor smooth transition Corner pieces and special connections Round solutions for internal and external vertical corners Internal corner Aluminium coving profiles for existing floor External corner Aluminium kickplate for not classified areas Terminal connection for doors

Easy to disassemble non-progressive Wall to wall connections Wall to ceiling connections Easy solution for internal and external vertical corners Silicone or polyurethane caulking Cold weld seams Air chases false columns Wall Panels Skin HPL GA AL ST/ST UPVC High Pressure Laminate Galvanized powder-coated steel sheet Aluminium steel sheets Stainless steel AISI 304 sheets Unplasticized coated steel sheets Stainless steel walls, doors and ceilings Wall Panels Insulation Materials High density polyurethane Polyisocyanurate Rock wool Honeycomb aluminium

Glass Walls Can be supplied in any size Glass walls are adopted in the pharmaceutical industry where it is necessary to inspect the rooms without having to enter with the risk of bringing contamination. 1/2” - 12 mm thick glass wall Glass walls allow greater illumination to the cleanroom areas, ensuring operators to work in a comfortable environment. Operators tend to be much more careful towards wall system when glass walls are used. Windows flushed to wall

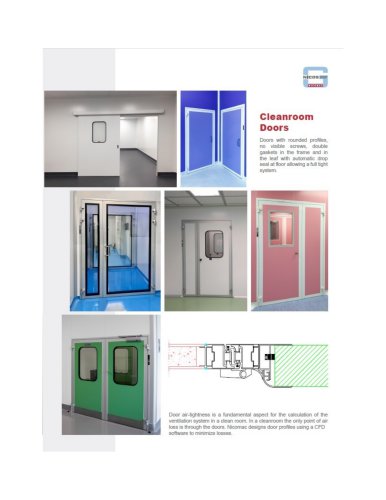

Automatic Roll-up Doors Cleanroom Doors Doors with rounded profiles, no visible screws, double gaskets in the frame and in the leaf with automatic drop seal at floor allowing a full tight system. Air-tight roll-up door suitable for ISO 7 environments (in accordance to ISO 14644 -14) Roll-up door suitable for CNC or ISO 8 environments. Light indicator with open microwave, touchless system and emergency button Open push button Door air-tightness is a fundamental aspect for the calculation of the ventilation system in a cleanroom. In a cleanroom the only point of air loss is through the doors. Nicomac...

Access Controls & Interlocks Cleanroom door accessories Badge reader Push plate Stainless steel sanitary handle Stainless steel fixed handle Interlocking Systems Emergency Exits Ergonomic handle Anodized fixed knob Anti-panic handle Internal self-closing system Stainless steel fixed knob External self-closing system Light indicator with push to open and emergency button with stainless steel plate

T-Grid Cleanroom ceiling Seamless WALK ON Cleanroom ceiling T-Grid walkable and non walkable Full size flush panels false ceiling, walkable type, tailored for specific needs. 45mm Nicos ceiling system are tailored to specific needs. This modular solution offers maximum flexibility for HEPA filters and lights fixture positioning. Different types of panels and tiles are available, both single sheet and sandwich types. Technical area access door. Z-Shape metal frame for HEPA filters and lights installation. Live Load - 35 Pounds /SQf (160 kg/Sqm)

Seismic certification on modular walls and ceilings Mangini-Nicos has certified all modular product lines to withstand major seismimc shocks. The obtained certification also accounts for partitions, false ceilings and systems. LED lights embedded into false ceiling profiles Sterile cleanrooms LED lights. AC156 Seismic Certification Shake-Table Testing of Nonstructural Components Approved october 2010, editorially revised December 2020 UV Lights for Special Lab applications Special solutions for raised floor Flexible dimensions for Cleanroom fixtures The AC-1\56 seismic test specification defines...

PAL (Personnel Air Lock) gowning room Material Pass-through A Static material pass-through box B Passive and dynamic passthrough box to be connected to HVAC system C Stand-alone dynamic passthrough box that includes filter and air fan Hepa filter Interlocked glass doors Stainless steel chamber Light indicator Stainless steel lower hopper with flange for air return duct connection Removable Stainless steel perforated bottom

Accessories Integration Digital synchronized clock Integrated stainless steel sink RABS (Restricted Access Barrier System) with Nicomac Europe walls and pass box

top-of-the-line insulated metal panels for wall and ceilings designed specifically for cleanroom and dry room applications in EV Battery Manufacturing. Ceiling Options Multiple options for ceilings for IMP applications: walkable seamless panels ceilings, plenum systems with lid ceilings and cleanroom-rated drop ceilings. Joint Options The Nicos Mangini IMP system have several different joint and leave out options, to be applied in different ways(Horizontally/Vertically) that allow to reach up to 60 ft height projects A convenient solution for every need 1) External beam joint 2) Internal H joint...

Some of our recent project experiences: Higher Education Labs Vaccine Manufacturing Facilities Compounding Pharmacies Vivariums and Animal Research facilities Transition from Research to manufacturing Cleanroom for Compunding Pharmacy at the University of Nevada Special Vivarium design for Walkable ceiling and Cleanroom system for Pfizer in Groton, CT Very compact and efficient vaccine facility for Inventprise in Seattle, WA 65K Sq.Ft. EV Battery Manufacturing Plant in Detroit, Michigan Transition from a research facility to a manufacturing one at Kalexsyn, Michigan
