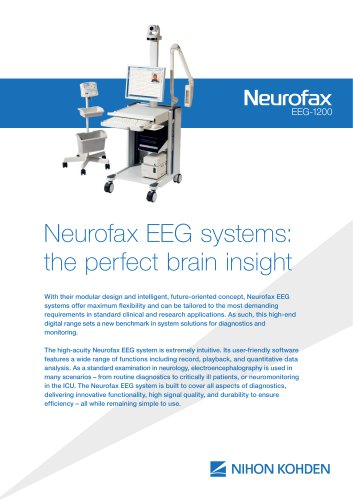

Neurofax EEG systems: the perfect brain insight With their modular design and intelligent, future-oriented concept, Neurofax EEG systems offer maximum flexibility and can be tailored to the most demanding requirements in standard clinical and research applications. As such, this high-end digital range sets a new benchmark in system solutions for diagnostics and monitoring. The high-acuity Neurofax EEG system is extremely intuitive. Its user-friendly software features a wide range of functions including record, playback, and quantitative data analysis. As a standard examination in neurology, electroencephalography is used in many scenarios – from routine diagnostics to critically ill patients, or neuromonitoring in the ICU. The Neurofax EEG system is built to cover all aspects of diagnostics, delivering innovative functionality, high signal quality, and durability to ensure efficiency – all while remaining simple to use

NeurofaxEEG-1200Pioneering technology for enhanced efficiency Neurofax EEG systems, designed for high-acuity performance, feature cutting-edge technology to deliver superlative versatility for even the most demanding clinical requirements. • Polaris.one, a powerful data management system, supports the straightforward administration and organization of diagnostic data. Modern communication interfaces (HL7 and GDT/BDT) enable integration into hospital and practice information systems. • Digital Video Software allows synchronized digital video for EEG systems using webcam, professional HD camera,...

Up to 1920x1080 pixels Up to 64 and one mark channel When multi-channel electrode junction box and mini junction boxes are used: up to 250 and one mark channel Overwrite and page-by-page 16 colors Provided Display resolution Number of display channels Display modes Waveform display color Waveform display on/ off /freeze Waveform position adjustment Waveform sweep speed Timing mark Time scale Event mark EEG scale Multiple displays Bipolar input (pairs) 7; The extra jacks (X1-X4) can be used Total input of inputs Up to 256 recorded referential electrodes and sampling frequency (clinical line) recorded...

Data Processing (continued) Calibration waveform Power requirements Line voltage Waveform shape Voltage ECG elimination filter Impedance check Indication on LED Impedance threshold Pattern Marking signal 0.25 Hz step wave or 10 Hz sine wave 2, 5, 10, 20, 50, 100, 200, 500, 1000 pV (x1000 for DC input signal) Available in acquisition and review programs Electrodes are displayed on the screen in electrode position layout. Impedance for each electrode is displayed and electrodes with impedance higher than the preset impedance threshold are highlighted LEDs on the electrode junction box with impedance...
