Chest freezer LT C150
Chest freezer LT C150
The Nordic Lab Chest Freezer LT C150 is designed for low cost of ownership and limited maintenance, featuring on-site service capabilities. It is easily installable and movable, with efficient cyclopentane insulation. The freezer is ISO 9001, 14001, and 45001 certified.
Specifications
- Technical: Gross volume of 140 litres and net volume of 133 litres. Temperature range from -25°C to -45°C, with a PTC temperature probe and Embraco compressor. Includes 1 basket with options for up to 3. Uses R 290 refrigerant with a noise level of 55 dB. Power consumption is 1.8 kWh per 24 hours, totaling 657 kWh per year. Operates at 230V and 50Hz.
- Features: Equipped with audible and visual alarms, castors, integrated lock, inner lids, and a digital controller with display. Includes data logging, high/low temperature alarms, and a porthole for external probe and CO2 backup. Optional connection for remote alarm.
- Material: Inner precoated white steel and outer galvanized pre-coated steel.
- Dimensions: Outer dimensions are 885 mm in height (with castors), 725 mm in width, and 680 mm in depth (including condenser and handle). Net weight is 55 kg. Inner dimensions vary with a height of 635/385 mm, width of 557/350 mm, and depth of 440 mm. Insulation is 80 mm PUR with internal humidity less than 5%.
Storage Capacity
The freezer can accommodate various box sizes with different configurations:
- 50 mm boxes: 18 total (6 per rack, 3 racks)
- 75 mm boxes: 12 total (4 per rack, 3 racks)
- 100 mm boxes: 9 total (3 per rack, 3 racks)
Product Number
Product number for the LT C150 is N111002.

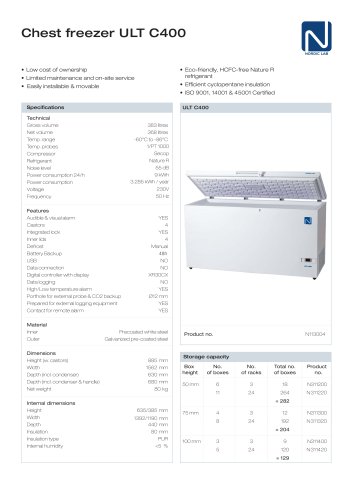

Catalog excerpts
• Limited maintenance • On-site service Gross volume Net volume Temp. range Temp. probes Compressor Baskets (incl./optional) Refrigerant Noise level Power consumption 24/h Power consumption Voltage Frequency Audible & visual alarm YES Defrost Manual Digital controller with display XR30CX High/Low temperature alarm YES Porthole for external probe & 002 backup 012 mm Connection for remote alarm Optional Inner Precoated white steel Outer Galvanized pre-coated steel Easily installable & movable Efficient cyclopentane insulation ISO 9001, 14001 & 45001 Certified Outer dimensions Height (with castors) 885 mm Depth (incl. condenser) 630 mm Depth (incl. condenser & handle) 680 mm Inner dimensions Height Width Depth Insulation Insulation type Internal humidity Storage capacity
