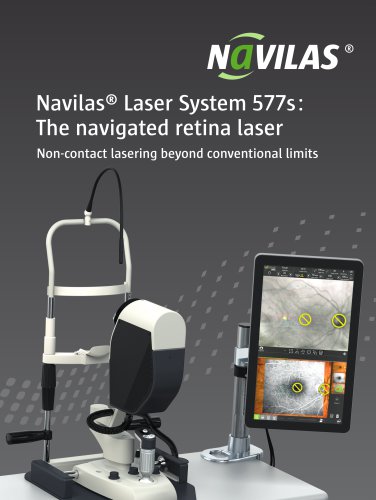

Navilas® Laser System 577s : The navigated retina laser Non-contact lasering beyond conventional limits

Navilas® 577s: All-digital laser therapy A new era in retinal disease management The proprietary retina navigation technology by OD-OS is a game-changer for retinal laser care. By Introducing our image guided treatment technology using eye tracking we advance a manual approach into a modern digital therapy.

Treatment modalities Clinical Applications with Navilas® Navilas® treatment functions are optimized for efficiency and effectiveness, providing lasting benefits for physician and patient alike. Diabetic Macular Edema Studies on Navilas® treatment of clinically significant macular edema demonstrate a significant increase in accuracy and an overall reduction in re-treatment burden, e.g. reducing the required number of injections while maintaining visual acuity gains achieved by the anti-VEGF treatments. Kernt et al., 2012-02 & Kozak et al., 2011-06 Proliferative Diabetic Retinopathy Navilas® delivers...

Navilas® 577s grows flexibly with your application needs. A modular platform built to evolve Our system is made to redefine precision and speed. And it is growing with your needs. Navilas® 577s allows you to begin with essential navigated treatments and expand to advanced features – all within a unified hardware platform. This ensures long-term value and clinical versatility. We make sure you have a smooth start into navigated lasering with Navilas®. Every purchase includes extensive onboarding support with onsite training, e-learning to support theoretical training and remote clinical support....

Core features of the system System components The following core features are available with any Navilas® 577s Pro configuration to benefit your clinical practice. The same hardware can be upgraded with advanced software features to the full capabilities of the Navilas® 577s Prime configuration. Touchscreen for pre- planning and live view of laser treatments Optical head with camera for integrated fundus imaging Base with joystick and adjustable controls High precision and reliability Table with adjustable height Accurate laser delivery with widefield fundus overview, eye tracking and exclusion...

Navigated microsecond pulsing therapy Transparent tissue-friendly treatment Navigated microsecond pulsing treatment allows photothermal stimulation of diseased retinal areas, while preserving function and avoiding scarring. The unique, all-digital approach enables reproducible subthreshold treatment. Exact planning on Navilas® fundus image – optionally on external image overlay Standardizable treatment planning using (confluent) free-form grids – optionally on overlaid diagnostic images Laser energy is applied in a series of brief pulses generally in the range of 100–300 μs. In contrast to conventional...

Digital workflow integration Comfortable treatments up to the ora serrata - with no lens on the eye Planning of treatments on imported diagnostic images and secure storage through DICOM/ PACS connectivity With special objectives treat from the macula region up to the ora serrata without a contact lens on the eye and optionally under infrared light which is less bright and painful for patients. This supports treatment of sensitive patients and is perceived as premium care. It also allows for an enhanced working distance between patient and doctor. Contact-free peripheral treatments External images...

+ Multimodal reporting and database Transparent visual reports for internal documentation, patients, and referrers Navilas® 577s generates multimodal digital treatment reports for quality control. Pictures and plans are permanently stored in the database and can be used for re-treatments. Reports document treatments for referring doctors, patients and billing departments. Easy onsite training Sharing of expertise through simulation mode and live observation on the large treatment screen Navilas® has an integrated treatment simulation mode (deactivation of laser beam), which allows for safe training...

+ Teleguidance Remote access to treatment screen for live guidance and distant learning Navilas® makes expert knowledge available through remote access to the treatment screen (“Teleguidance”). This supports distant learning from live treatments and expert guidance through remote access. “Navigation continues to transform surgical interventions into safer, more standardized and more predictable procedures with finally better outcomes for patients. Adding teleguidance to navigated laser broadens the possibilities for teaching and remote expert collaboration and this way addresses common challenges...

Unique functionalities ** Available on some competitor systems

Make every spot count Navilas® Laser System 577s Technical Specifications Laser wavelength 577 nm (yellow) wavelength Optically Pumped Semiconductor Laser (OPSL), Class IV Laser type Laser power 50-2000 mW (depending on spot size) Pulse duration Treatment modes Continuous Wave Microsecond Pulsing: 50-500 μs; 5, 10, 15 %, variable duty cycle Anterior applications: Iridotomy, MLT/PLT Digital fundus imaging True-color and infrared Non-contact objective (focal/peripheral): app. 50°/120° diagonal static (+ dynamic extension) Optics and field of view Contact objective (focal/peripheral): up to 165°/180°...
