IP10-08x03CU5101 Manueller Zellzähler

IP10-08x03CU5101 Manueller Zellzähler
1 / 1 PageView full catalog

IP10-08x03CU5101 Manueller Zellzähler

Product catalog summary
Product Overview: The document is a factsheet for a product by Opto GmbH, specifically the OptoViewer 2.0. This tool is designed for projecting a digital grid onto live images, with adjustable color and width. It supports transmitted light functionality for imaging transparent samples such as microfluidic chips, pathology slides, Petri dishes, and well plates.
Technical Specifications:
  • Working Distance: 3.6 mm
  • Magnification: 20x
  • Image Color: Not specified
  • Frames per Second: 36 fps
  • Lighting: Transmitted Light (white)
  • Sensor: 5.04 MP
  • Connection: USB3.1 Gen. 1 Type C
  • Dimensions: 140 mm (W) x 193 mm (L) x 40 mm (H)
Additional Information: The product is suitable for digital zoom applications, such as counting in human blood smears. The order number for this product is IP10-08x03CU5101. Note that specifications are subject to change without prior notice as of August 2022.
See more

Catalog excerpts

IP10-08x03CU5101 Manueller Zellzähler-1

OptoViewer description “Grid” Technical Specifications - The free OptoViewer 2.0 allows the projection of a digital grid into the live image - Color and width of the grid could be adjusted easily - The image together with the grid could be stored - Transmitted light functionality enables the imaging of transparent samples like: • Microfluidic Chips • Pathology slides • Petri dishes • Well plates WD Magnification Image Frames Lighting Sensor Connection Dimension 3.6 mm 20 x Colour 36 fps Transmitted Light white 5.04 MP USB3.1 Gen. 1 Type C W140 x L193 x H40 mm Human Blood smear Digital zoom, perfect for counting 08/2022 - Specifications are subject to change without prior notice. www.opto-gmbh.com Opto GmbH • Floriansbogen 2/4 • 82061 Neuried • Germany • Tel: +49 89 8980 55

 Open the catalog to page 1

All OPTO Germany catalogs and technical brochures

  1. Opto 2025 We automate Microscopy
    Opto 2025 We automate Microscopy

    3  Pages

  2. IM·profile M Transmitted light digital microscope - speed
    IM·profile M Transmitted light digital microscope - speed

    2  Pages

  3. IM•profile M
    IM•profile M

    2  Pages

  4. Microscope Accessories
    Microscope Accessories

    28  Pages

  5. IM profile M as a compact transmitted light microscope for Biomedicine and Microfluidics
    IM profile M as a compact transmitted light microscope for Biomedicine and Microfluidics

    2  Pages

  6. Product Info for Integrators and Machine Builders
    Product Info for Integrators and Machine Builders

    1  Page

  7. 043-603020
    043-603020

    2  Pages

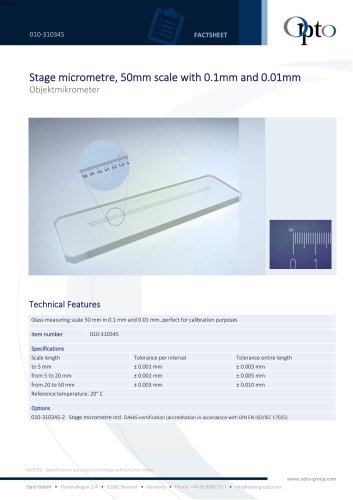

  8. 010-310345-2
    010-310345-2

    1  Page

  9. 100-GS-100-02
    100-GS-100-02

    2  Pages

  10. 100-GS100-01
    100-GS100-01

    2  Pages

  11. Opto Medical & Life Science
    Opto Medical & Life Science

    4  Pages

  12. IM_foldable_stand_light
    IM_foldable_stand_light

    2  Pages

  13. Opto Software
    Opto Software

    6  Pages

  14. Imaging Modules
    Imaging Modules

    6  Pages

  15. Trackstand
    Trackstand

    2  Pages

  16. 045-100130-01
    045-100130-01

    2  Pages

  17. 100-MS50-GAN
    100-MS50-GAN

    2  Pages

  18. 100-MS50-AN
    100-MS50-AN

    2  Pages

  19. 100-MS25-GAN
    100-MS25-GAN

    2  Pages

  20. 100-MS25-AN
    100-MS25-AN

    2  Pages

  21. FOV_MMM
    FOV_MMM

    2  Pages

  22. Imaging Module IM linea M
    Imaging Module IM linea M

    2  Pages

  23. IM•compact M
    IM•compact M

    2  Pages

  24. IM•profile M Droplet based Microfluidics
    IM•profile M Droplet based Microfluidics

    4  Pages

  25. IM•profile M Droplet based Microfluidics (1page)
    IM•profile M Droplet based Microfluidics (1page)

    1  Page

  26. IM-Foldable stand 043-600505
    IM-Foldable stand 043-600505

    2  Pages

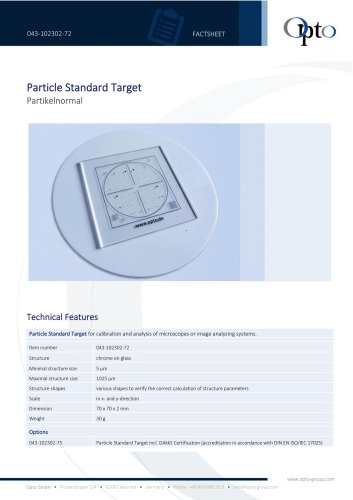

  27. PARTICLE_TARGET
    PARTICLE_TARGET

    2  Pages

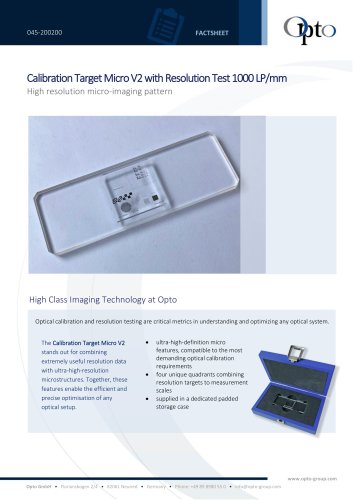

  28. 045-200200 Calibration target V2
