100.000 LUX Procedure lamp IGlux Series

 100.000 LUX Procedure lamp IGlux Series

100.000 LUX Procedure lamp IGlux Series

Product catalog summary
Overview: The IGlux series, specifically the IG-100 model, is designed for surgical applications using advanced LED technology. This series enhances color rendering (CRI) and reduces heat emissions, making it ideal for medical environments.
Specifications:
  • Light Intensity: Adjustable from 20,000 to 100,000 lux.
  • LEDs: 12 high-performance LEDs with a lifespan of over 60,000 hours, CRI (Ra) greater than 96, and a color temperature of 4500ºK.
  • Design: Features a compact, easy-to-clean dome with smooth edges.
  • Base: Robust, mobile base with four 80 mm wheels, two with brakes, and optional antistatic wheels.
  • Handle: Removable and sterilisable.
  • Light Intensity Adjustment: Controlled via a tactile keyboard.
  • Power Consumption: 32 W, 58 VA.
  • Voltage: 100 - 240 V, 47-63 Hz.
Models Available:
  • IG-100C: Ceiling lamp.
  • IG-100DC: Ceiling lamp with double headlight.
  • IG-100M: Moveable lamp.
  • IG-100MB: Moveable lamp with emergency equipment.
  • IG-100W: Wall-mounted lamp.
Technical Data:
  • Light Field Diameter: d50 at 13 cm, d10 at 25 cm.
  • Headlight Diameter: 300 mm.
Additional Features: Available in different colors, ensuring versatility in various settings.
See more

Catalog excerpts

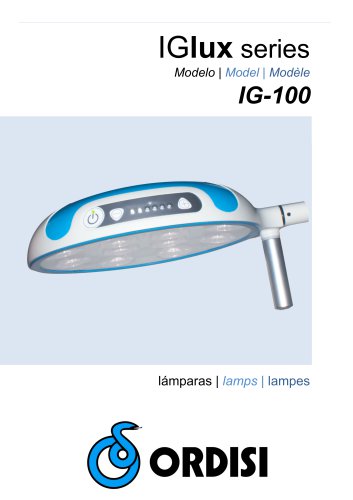

 100.000 LUX Procedure lamp IGlux Series-1

IGlux series Modelo | Model | Modèle lámparas | lamps | lampes

 Open the catalog to page 1
 100.000 LUX Procedure lamp IGlux Series-2

La serie IGlux ha sido diseñada utilizando LEDS de última generación que mejoran las prestaciones en el campo quirúrgico aportando un mayor rendimiento cromático (CRI) y reduciendo la emisión de calor. IGlux series has been designed to improve performance in the surgical field by using the latest LEDS generation that offers a higher color rendering (CRI) and minimizes heat emissions. La série IGlux a été conçue en utilisant des LED de dernière génération qui améliorent les prestations dans le domaine chirurgical, en apportant un meilleur rendement chromatique et en réduisant l'émission de chaleur....

 Open the catalog to page 2
 100.000 LUX Procedure lamp IGlux Series-3

MODELOS | MODELS | MODÈLES      IG-100C: Lámpara de techo | Ceiling lamp | Lampe de plafond IG-100DC: Lámpara de techo con doble brazo | Ceiling lamp with double headlight | Lampe de plafond et double bras. IG-100M: Lámpara rodable | Moveable lamp | Lampe à roulettes IG-100MB: Lámpara rodable con equipo de emergencia | Moveable lamp with emergency equipment | Lampe à roulettes avec kit d'urgence. IG-100W: Lámpara con soporte para pared | Wall mounted lamp | Lampe murale.

 Open the catalog to page 3
 100.000 LUX Procedure lamp IGlux Series-4

DATOS TECNICOS | TECHNICAL DATA | CARACTERISTIQUES TECHNIQUES Diametro de la cupula Diameter of the headlight Diametre de la coupole Intensidad lummica Light intensity Intensity lumineuse Temperatura de color Colour temperature Temperature de couleur Diametro de campo Light field diameter Diametre de champ Fuente de luz Light source Source lumineuse Vida Media Leds Average LED lifetime Vie des LEDs

 Open the catalog to page 4
