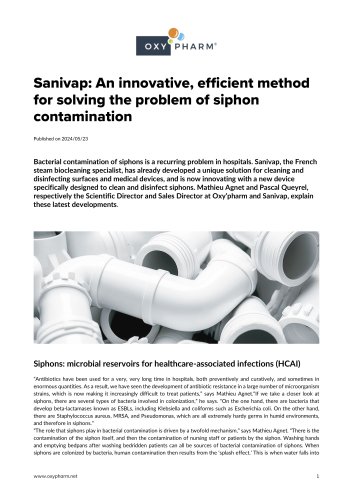

Sanivap: An innovative, efficient method for solving the problem of siphon contamination Published on 2024/05/23 Bacterial contamination of siphons is a recurring problem in hospitals. Sanivap, the French steam biocleaning specialist, has already developed a unique solution for cleaning and disinfecting surfaces and medical devices, and is now innovating with a new device specifically designed to clean and disinfect siphons. Mathieu Agnet and Pascal Queyrel, respectively the Scientific Director and Sales Director at Oxy’pharm and Sanivap, explain these latest developments. Siphons: microbial reservoirs for healthcare-associated infections (HCAI) “Antibiotics have been used for a very, very long time in hospitals, both preventively and curatively, and sometimes in enormous quantities. As a result, we have seen the development of antibiotic resistance in a large number of microorganism strains, which is now making it increasingly difficult to treat patients,” says Mathieu Agnet.“If we take a closer look at siphons, there are several types of bacteria involved in colonization,” he says. “On the one hand, there are bacteria that develop beta-lactamases known as ESBLs, including Klebsiella and coliforms such as Escherichia coli. On the other hand, there are Staphylococcus aureus, MRSA, and Pseudomonas, which are all extremely hardy germs in humid environments, and therefore in siphons.” “The role that siphons play in bacterial contamination is driven by a twofold mechanism,” says Mathieu Agnet. “There is the contamination of the siphon itself, and then the contamination of nursing staff or patients by the siphon. Washing hands and emptying bedpans after washing bedridden patients can all be sources of bacterial contamination of siphons. When siphons are colonized by bacteria, human contamination then results from the ‘splash effect.’ This is when water falls into

the siphon, causing a splash and generating droplets which then contaminate the environment around the water point, as well as the hands and gowns of carers, and possibly also patients if they are close to the water point. As you can imagine, the situation is even more concerning for immunocompromised patients in burns wards and intensive care units.” Mathieu Agnet also highlights how contamination can come from water itself. “The presence of minerals in water, which can form rough deposits on drain surfaces, and the development of organic matter, both contribute to the formation of biofilm,...

THE SANIVAP METHOD: A SCIENTIFICALLY PROVEN SOLUTION FOR STEAM BIOCLEANING SIPHONS “Before launching the Sanivap method on the market, we first had to carry out a feasibility study and scientifically demonstrate that the process was effective,” says Pascal Queyrel. “The work carried out with the Fonderephar laboratory enabled us to complete this step. Next, two in situ studies were carried out – one at Toulon Hospital and one at Rangueil Hospital – to ascertain the effectiveness of the process. Once the results had been presented, proving the product’s reliability and utility, the next phase...

IVAP SP400 KIT The compact and ergonomic device for daily bio-steam cleaning. The SP400 Kit ensures the bio-cleaning of surfaces: floors, ceilings, walls, furniture, medical devices, etc. The constant quality of the steam from the SP400 Kit stops surfaces from becoming dirtied again and ensures optimal cleaning and disinfecting: bactericidal, yeasticidal, fungicidal, virucidal. Integrated into its bio-cleaning trolley and compatible with a wide range of suitable accessories. It is simple to use and well-suited to daily maintenance protocols. Device equipped with a control screen and settings...

THE BIO-CLEANING PROCESS 1. PREPARATION Preparation of the SP400 Kit and controls (water level, cleanliness of accessories, connections, purging, etc.). 2. STEAM ACTION The steam acts as a surfactant and suspends any dirt on the surface. The steam parameters are continuous monitored by the device to ensure its efficiency. 3. MECHANICAL ACTION As the microfibre moves, it picks up dirt. 4. HEAT ACTION The high temperature destroys bacteria and other germs. 5. DRYING PHASE Any residual heat is released and the substrate is immediately dried, reducing the risk and therefore preventing the development...

■ ■ Manufactured in France by Sanivap according to ISO 13485. Saniv devices are Class Ila medical devices - Notified body: GMED 0459 COMPATIBILITY FIND OUT MORE SP250 | SP251 - MOP BROOM MOP steam brooms are designed for cleaning and disinfecting smooth surfaces such as floors, walls and ceilings. • Microfibre for smooth surfaces: MV451V. Long MOP broom SP250/8620.250 MOP Broom short SP251/8620.251 • They are used with a microfibre and leave no deposits on treated surfaces. • Regular use prevents biofilm from forming. • SP250: handle length 120 cm, tray length 40 cm, weight 1.5 kg. • SP251: handle...

The SP200 is an angled nozzle with a brush that cleans narrow and hard-to-reach spaces. It is mainly used in renovation to remove stubborn dirt. • 3cm SP30 nylon brush. • Comes with 1 3cm SP30 nylon brush. Angled nozzle with brush 3cm SP200/8620.200 The SP204 is an angled nozzle with a cone that disinfects hollow surfaces. The cone maintains the temperature required to disinfect the area. • Disinfection cone SP33. • Comes with a 6 cm SP33 disinfection Disinfection Angled Nozzle Cone SP204/8620.204 The SP207 is an accessory designed to disinfect siphons. The stem deeply decontaminates the siphon...

SP305 - SIPHON SHOWER HEAD DISINFECTION ACCESSORY The SP305 is a steam lance with a cone that disinfects wide and hollow surfaces. The cone maintains the temperature required to disinfect the area. • Comes with a 13 cm disinfection cone. Siphon Shower Head Disinfection Accessory 13 cm The SP210 is a curved nozzle designed to disinfect high-risk areas. It is mainly used for decontaminating tubular and irregular surfaces. The SP220 brush is designed for cleaning and disinfecting high surfaces. It is mainly used in renovation to remove stubborn dirt. ® 391 rue Louis Arnal, ZAC des Pres Secs, 69380...
