Genius NM32LA - Data Sheet

Genius NM32LA - Data Sheet

Genius NM32LA - Data Sheet

Product catalog summary
Description: The Genius NM32LA is a nitrogen generator designed for laboratory use, particularly for LC-MS applications. It utilizes membrane technology and internal compressors to produce nitrogen on-site, eliminating the need for external air sources. The generator is compact, mobile, and requires minimal maintenance.
Key Features:
  • Compressor-based solution that operates independently of external air sources.
  • Proven reliability with widespread use in laboratories globally.
  • Equipped with duty and service indicators.
  • Features a high-specification compressor in an insulated chamber to reduce noise and vibration.
  • Fully operational once connected to an instrument and power supply.
  • Cost-effective and eliminates the need for pressurized cylinders.
  • Compatible with most LC-MS instruments.
Technical Specifications:
  • Max Flow Rate: 32 L/min
  • Max Pressure: 100 psi / 6.9 bar
  • Max Relative Humidity: 80% Non-Condensing
  • Max Altitude: 2000 Metres
  • Particle Filtration: < 0.01μm
  • Gas Outlets: 1x 1/4” BSP Female
  • Operating Temperature: 5ºC - 35ºC / 41ºF - 95ºF
  • Electrical Requirements: 230v 50/60Hz 7.0A
  • Power Consumption: 1610 Watts
  • Noise Level: 59 dB
  • Dimensions: 713 x 600 x 750 mm / 28.1 x 23.6 x 29.5 in
  • Weight: 102.5 Kg (226 lbs)
Product Certifications: The generator is backed by a 12-month warranty and conforms to ISO:9001:2015 standards. Aftercare support packages are available for extended maintenance and technical support.
Ordering Information: Part Number: 10-6020. Additional services include annual service and maintenance plans, and a step-up transformer for 208V electrical supply.
See more

Catalog excerpts

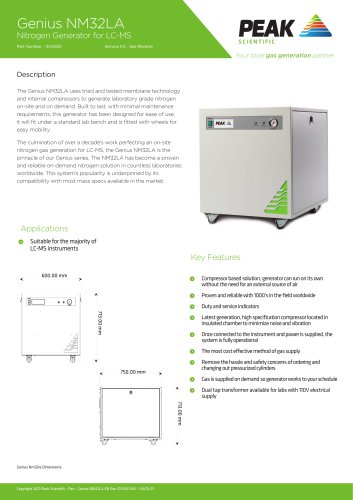

Genius NM32LA - Data Sheet-1

Nitrogen Generator for LC-MS Part Number : 10-6020 Your local gas generation partner Description The Genius NM32LA uses tried and tested membrane technology and internal compressors to generate laboratory grade nitrogen on-site and on demand. Built to last, with minimal maintenance requirements, this generator has been designed for ease of use, it will fit under a standard lab bench and is fitted with wheels for easy mobility. The culmination of over a decade’s work perfecting an on-site nitrogen gas generation for LC-MS, the Genius NM32LA is the pinnacle of our Genius series. The NM32LA has become a proven and reliable on-demand nitrogen solution in countless laboratories worldwide. This system’s popularity is underpinned by its compatibility with most mass specs available in the market. Suitable for the majority of LC-MS instruments Compressor based solution, generator can run on its own without the need for an external source of air Proven and reliable with 1000’s in the field worldwide Duty and service indicators Latest generation, high specification compressor located in insulated chamber to minimize noise and vibration Once connected to the instrument and power is supplied, the system is fully operational The most cost effective method of gas supply Remove the hassle and safety concerns of ordering and changing out pressurized cylinders Gas is supplied on demand so generator works to your schedule Dual tap transformer available for labs with 110V electrical supply Copyright 2021 Peak Scientific - Rev - Genius NM32LA EN Rev 10 RSID 487 - 04/

 Open the catalog to page 1
Genius NM32LA - Data Sheet-2

Ordering Information PEAK Protected]"1 Peak Scientific gas generators define the benchmark in reliability, convenience and performance in laboratories around the world, and come backed by a 12 month warranty. Beyond this period however you can ensure that you're investment continues to be [Protected] by our comprehensive generator care cover. Our world-class aftercare support packages deliver a program of scheduled preventative maintenance whilst giving you the reassurance of instant access to worldwide technical support and priority on-site response in the untimely event of a breakdown. Product...

 Open the catalog to page 2

All Peak Scientific Instruments catalogs and technical brochures

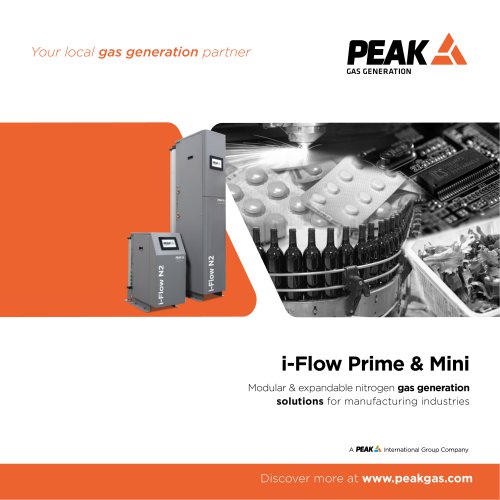

  1. i-Flow

    12  Pages

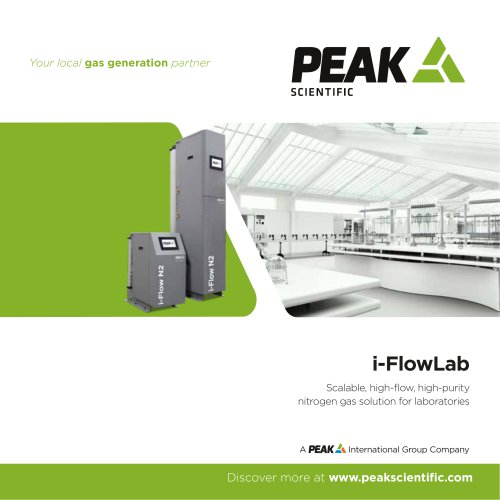

  2. i-FlowLab

    12  Pages

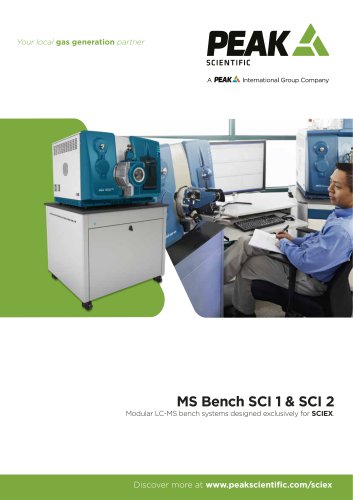

  3. MS Bench
