DT-HF30A / DT-HF30P / DT-HF30N - Nitrogen Generators

DT-HF30A / DT-HF30P / DT-HF30N - Nitrogen Generators

DT-HF30A / DT-HF30P / DT-HF30N - Nitrogen Generators

Product catalog summary
Overview
The document discusses the advantages of using Nitrogen Generators over traditional bottled gas in laboratory settings. It highlights the safety, reliability, and cost-effectiveness of these generators, emphasizing their role in providing high-purity gases on-demand without the risks associated with high-pressure gas cylinders.
Key Features
  • Safety and Ease of Use: Eliminates the need for high-pressure gas cylinders, reducing the risk of explosions and gas leaks. Features plug-and-play installation and a simple user interface.
  • Continuous Gas Supply: Provides an unlimited, on-demand supply of nitrogen, ensuring long asset life and low cost of ownership.
  • Compatibility: Specifically adjusted for PHCbi multigas incubators to maintain controlled oxygen levels between 2-18%.
  • Consistent Gas Quality: Ensures high-purity gases, eliminating batch-to-batch variations and protecting sensitive instruments.
Product Specifications
  • HF30A: Ideal for laboratories without a high-pressure clean air source. Offers up to 32 l/min N2 supply at 1 bar with 99.5% purity. Features include an oil-free piston compressor, 3-stage filtration, and a PLC control system.
  • HF30P: Pneumatic version of HF30A, suitable for all laboratories. Compact design allows for flexible placement.
  • HF30N: Suitable for labs with an existing air supply. Offers similar specifications to HF30A with a compact design for bench placement.
Technical Details
  • Flow Rate: Up to 32 l/min
  • Purity: Up to 99.5%
  • Pressure: 1 bar
  • Noise Level: 49 dB(A) for HF30A and HF30P, <59 dB(A) for HF30N
Conclusion
Nitrogen Generators provide a reliable, cost-effective, and safe alternative to bottled gas, making them an ideal choice for laboratories requiring high-purity nitrogen.
See more

Catalog excerpts

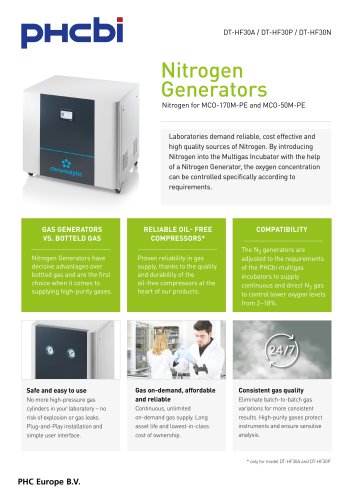

DT-HF30A / DT-HF30P / DT-HF30N - Nitrogen Generators-1

Nitrogen Generators Laboratories demand reliable, cost effective and high quality sources of Nitrogen. By introducing Nitrogen into the Multigas Incubator with the help of a Nitrogen Generator, the oxygen concentration can be controlled specifically according to requirements. RELIABLE OIL- FREE COMPRESSORS* Nitrogen Generators have decisive advantages over bottled gas and are the first choice when it comes to supplying high-purity gases. Proven reliability in gas supply, thanks to the quality and durability of the oil-free compressors at the heart of our products. Safe and easy to use No more high-pressure gas cylinders in your laboratory – no risk of explosion or gas leaks. Plug-and-Play installation and simple user interface. Gas on-demand, affordable and reliable Continuous, unlimited on-demand gas supply. Long asset life and lowest-in-class cost of ownership. COMPATIBILITY The N2 generators are adjusted to the requirements of the PHCbi multigas incubators to supply continuous and direct N2 gas to control lower oxygen levels from 2~18%. Consistent gas quality Eliminate batch-to-batch gas variations for more consistent results. High-purity gases protect instruments and ensure sensitive analysis.

 Open the catalog to page 1
DT-HF30A / DT-HF30P / DT-HF30N - Nitrogen Generators-2

HF30A Our HF30A Nitrogen Generator is ideal for use in compatibility laboratories, especially where a source of high pressure clean air is not available at the place of use. N2 supply up to 32 f/min @ 1 bar with purity up to 99.5%. HF30A is lowest in class for cost of ownership and ensures 24/7 performance. It's an innovative Nitrogen Generator with a high-quality compressor and a PLC control system. • Oil free piston compressor. Powered by Durr Technik • 3-stage filtration to protect your equipment. • Internal Nitrogen storage. For immediate N2 availability, worldwide vessel approval for safety...

 Open the catalog to page 2

All PHC Europe catalogs and technical brochures

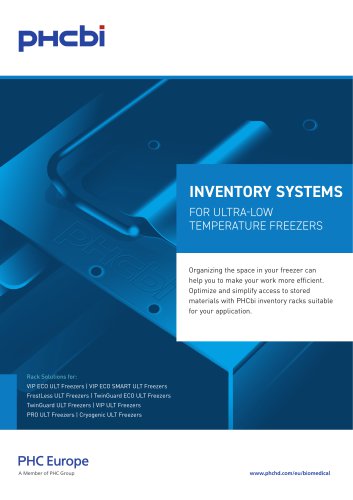

  1. Racks Brochure

    16  Pages

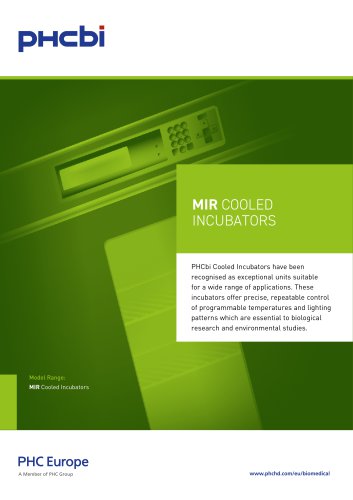

  2. MIR Brochure

    6  Pages

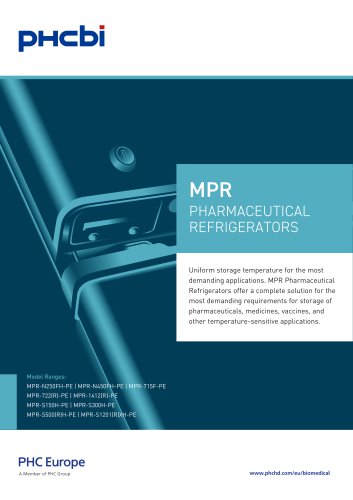

  3. MPR Brochure
