MDF-DU503VHE-PE - VIP SMART ULT Freezers (-86°C)

MDF-DU503VHE-PE - VIP SMART ULT Freezers (-86°C)

MDF-DU503VHE-PE - VIP SMART ULT Freezers (-86°C)

Product catalog summary
Overview
The document discusses the features and benefits of using natural refrigerants in ultra-low temperature freezers, specifically focusing on the VIP SMART -86°C to -40°C upright freezer. It highlights the integration of natural refrigerants, compressors, and electronics to reduce energy consumption and heat output while maintaining performance.

Specifications
The freezer model MDF-DU503VHE-PE has a capacity of 528 liters and operates within a temperature range of -86°C to -40°C. It features a microcomputer control system with an LCD digital display and uses hydrocarbon (HC) refrigerants combined with inverter technology for enhanced efficiency.

Energy Efficiency
The VIP SMART freezer consumes approximately 30% less energy than most existing models, with specific energy consumption rates of 5.0 kWh/day at -80°C and 4.0 kWh/day at -70°C. This is achieved through inverter-driven compressors and proprietary algorithms that ensure tight temperature uniformity.

Security and Monitoring
The freezer offers multiple access control options, including facial recognition, keypad, proximity card, and key. It also features a 10.1-inch high-resolution LCD touchscreen for user control and a USB port for data transfer. Enhanced security is provided through face recognition and NFC authentication, along with an electric lock.

Performance and Reliability
The freezer is designed for superior performance with a cascade cooling method and hermetic type compressors. It includes a platinum resistance temperature sensor and vacuum insulation panels for optimal cooling performance.

Construction and Design
The exterior and interior materials are painted steel, and the freezer includes integrated shelves and a vacuum release port. It is equipped with alarms for power failure, high and low temperatures, and door open alerts.

Options and Accessories
Optional features include a tray kit, small inner door kit, face recognition kit, NFC system, and various recorder sensors and interface boards. The freezer is certified under ISO9001 quality management standards.

Contact Information
For more information, contact PHC Corporation at Eikdonk 1, 4825 AZ Breda, Netherlands, or visit their website at www.phchd.com/eu/biomedical.
See more

Catalog excerpts

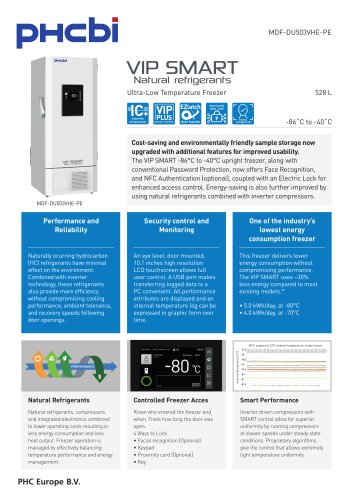

MDF-DU503VHE-PE - VIP SMART ULT Freezers (-86°C)-1

Ultra-Low Temperature Freezer ULT & CRYOGENIC Cost-saving and INCUBATION environmentally friendly sample storage now compressor 58345 HYBRID upgraded with additional features for improved usability. The VIP SMART -86°C to -40°C upright freezer, along with INCUBATION conventional Password Protection, now offers Face Recognition, and NFC Authentication (optional), coupled with an Electric Lock for enhanced access control. Energy-saving is also further improved by INCUBATION using natural refrigerants combined with inverter compressors. Naturally ocurring hydrocarbon (HC) refrigerants have minimal effect on the environment. Combined with inverter technology, these refrigerants also provide more efficiency without compromising cooling performance, ambient tolerance, and recovery speeds following door openings. Security control and Monitoring One of the industry’s lowest energy consumptionIntegrated freezer shelves This freezer delivers lower energy consumption without compromising performance. The VIP SMART uses ~30% less energy compared to most existing models.* An eye level, door mounted, 10.1 inches high resolution LCD touchscreen allows full user control. A USB port makes transferring logged data to a PC convenient. All performance attributes are displayed and an internal temperature log can be expressed in graphic form over time. Natural Refrigerants Controlled Freezer Acces Smart Performance Natural refrigerants, compressors and integrated electronics combined to lower operating costs resulting in less energy consumption and less heat output. Freezer operation is managed by effectively balancing temperature performance and energy management. Know who entered the freezer and when. Track how long the door was open. 4 Ways to Lock • Facial recognition (Optional) • Keypad • Proximity card (Optional) • Key Inverter driven compressors with SMART control allow for superior uniformity by running compressors at slower speeds under steady state conditions. Proprietary algorithms give the control that allows extremely tight temperature unifo

 Open the catalog to page 1
MDF-DU503VHE-PE - VIP SMART ULT Freezers (-86°C)-2

Natural refrigerants Ultra-Low Temperature Freezer Performance Data Dimensions Unit: mm Model Number 1) Exterior dimensions of main cabinet only, excluding handle and other external projections. 2) Usable storage capacity of 2" boxes, in the original configuration of the freezer 3) Air temperature measured at freezer centre, ambient temperature 30°C, no load. 4) Nominal value - Background noise 20 dB[A]. 5) Installation of small inner door kit may effect usable storage capacity. 6) Requires sensor cover MTR-DU700SF-PW. handle and other external projections. 7) The NFC System is only available...

 Open the catalog to page 2
