PATHFAST™ TYPE E

PATHFAST™ TYPE E

Product catalog summary

Overview: The document describes the PATHFASTTM chemiluminescence immunoassay system, designed for rapid and precise biomarker detection in clinical settings. It highlights the system's capabilities, technical specifications, and available consumables and accessories.

Sample Collection and Testing Procedure: The system can process whole blood, serum, plasma, and sputum samples using heparin-NA, heparin-Li, or EDTA collection tubes. A 100 µL sample is transferred into reagent cartridges, which are then placed in the instrument to start the assay. Results are available in less than 17 minutes, with the ability to process up to 6 samples simultaneously.

System Features: The PATHFASTTM system includes a large 8.4-inch LCD touchscreen, a wide open door for easy cartridge access, a user-friendly layout, a built-in barcode scanner, printer, and USB port for data transfer. It also features a three-color indicator for system status visibility and a maintenance hatch for operational efficiency.

Technical Specifications: The system is a desktop immunoassay analyzer with dimensions of W320 x D586 x H524 mm and a weight of 32 kg. It uses chemiluminescence enzyme immunoassay technology and operates at a reaction temperature of 37°C. The system can store up to 1000 patient data entries and supports data transfer via RS-232C and Ethernet ports. It requires 100 - 240 V AC power and consumes 360 VA.

Available Reagent Kits: The document lists various reagent kits for TB diagnostics, emergency care diagnostics, and sepsis diagnostics, each with a specific product code and pack size of 60 tests. Controls for these tests are also available.

Contact Information: The document provides contact details for the company, located in Breda, Netherlands, and a website for further information.

Catalog excerpts

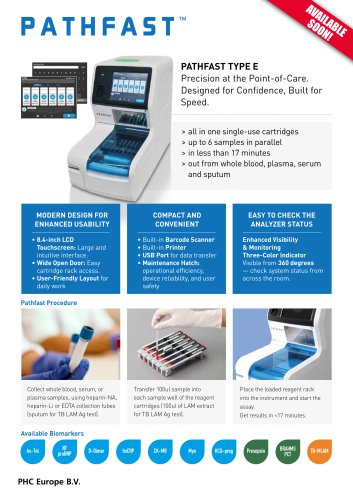

AV A SO ILAB ON LE ! PATHFAST TYPE E Precision at the Point-of-Care. Designed for Confidence, Built for Speed. > all in one single-use cartridges > up to 6 samples in parallel > in less than 17 minutes > out from whole blood, plasma, serum and sputum MODERN DESIGN FOR ENHANCED USABILITY EASY TO CHECK THE ANALYZER STATUS • 8.4-inch LCD Touchscreen: Large and intuitive interface. • Wide Open Door: Easy cartridge rack access. • User-Friendly Layout for daily work • Built-in Barcode Scanner • Built-in Printer • USB Port for data transfer • Maintenance Hatch: operational efficiency, device reliability, and user safety Enhanced Visibility & Monitoring Three-Color Indicator Visible from 360 degrees — check system status from across the room. Pathfast Procedure Collect whole blood, serum, or plasma samples, using heparin-NA, heparin-Li or EDTA collection tubes (sputum for TB LAM Ag test). Transfer 100ul sample into each sample well of the reagent cartridges (100ul of LAM extract for TB LAM Ag test). Place the loaded reagent rack into the instrument and start the assay. Get results in <17 minutes. Available Biomarkers hs-Tnl

Open the catalog to page 1

The highly precise, fast and compact chemiluminescence immunoassay system The information provided in this document is for informational purposes only and is subject to change without notice. Eikdonk 1 | 4825 AZ Breda | Netherlands T: +31 (0) 76 543 3833
