PRO35F Diagnostic Line

Product catalog summary

Product Overview: The PRO35F Diagnostic Line offers a premium modular soundproof booth designed for clinical analyses and diagnostic tests in hospitals and specialized audiology centers. It features a new sanitizable internal lining and complies with EU regulation 2017/745 on Medical Devices.

Specifications: The booths are available in various sizes up to 9 sq.m. and are equipped with a new Cam-Lock system for easy installation. They offer higher soundproofing performance and comply with ISO 8253-1 (-2):2010 standards. The noise reduction is tested at the Technical-Physics Laboratory C.S.I. S.p.A. in Milan, Italy.

Design and Structure: The booth's structure is made of an aluminum frame insulated with acoustic materials. The exterior is a white, fireproof, washable panel, while the interior features a soundproofing fiber covered with a sanitizable, fireproof acoustic material. The door and window are designed for easy access and visibility.

Ventilation and Sanitation: The booth includes a silent forced ventilation system, with an optional saniVENT system for soundproofing and air sanitization. The internal lining can be sanitized using a damp cloth with colorless alcohol-based spray.

Optional Equipment: Options include wall ventilation support, folding tables, ramps, jack cable extensions, emergency light, internal power sockets, and more. Custom sizes and configurations are available upon request.

Installation and Packaging: The booth is delivered in an ISPM wooden case with a DIY kit for installation without specialized staff. It requires 10 cm of space on each side for installation.

Standards and Compliance: The product is classified as a Medical Device Class I and complies with various EU and international standards, including UNI EN ISO 8253-1:2010 and UNI EN ISO 8253-2:2010.

Applications: Suitable for various clinical and diagnostic applications, including Free Field tests.

Technical Specifications: Detailed acoustic insulation data is provided across different frequencies, and the booth is available in multiple sizes with specific dimensions and weights.

Catalog excerpts

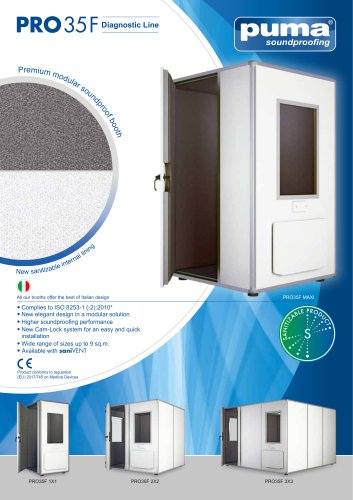

Diagnostic Line soundproofing PremiumNew san’rtiz® All our booths offer the best of Italian design • New elegant design in a modular solution • Higher soundproofing performance • New Cam-Lock system for an easy and quick installation • Wide range of sizes up to 9 sq.m. • Available with saniVENT Product conforms to regulation (EU) 2017/745 on Medical Devices

Open the catalog to page 1

Technical specification Available sizes (bespoke sizes on request) * Overall height of the booth equipped with air ventilaiton system. Tolerance of +/- 2 cm due to adjustable feet PRO35F line is recommended for clinical analyses and diagnostic tests in hospitals and specialized audiology centers. The modular solutions are suitable for different applications and exams such as Free Field test. The structure of the booth is made of a supporting aluminium frame insulated by acoustic materials. The exterior finishing is made of a white highly-resistant, fireproof, washable panel. The internal finishing...

Open the catalog to page 2
