CO250CAN

Product catalog summary

Overview: The CO250CAN is a contactless connector designed for power and data transmission without physical contact, suitable for applications requiring unlimited 360° rotation. It is ideal for high-reliability rotary applications such as rotating platforms and robotics.

Key Features:

250W continuous power delivery.
1 Mbps bidirectional data transmission.
Operates over a maximum air gap of 15 mm with ±5 mm misalignment tolerance.
Unlimited 360° rotation capability.
Maintenance-free operation with no wear, corrosion, or contamination.
Sealed design for enhanced durability and safety in harsh environments.

Applications: The connector is suitable for industrial automation, radar systems, medical robots, pipeline inspection, and other rotative systems.

Technical Specifications:

Technology: Inductive Couplers.
Transmission: Hybrid – Power & Data.
Protocol: CAN.
Operating Temperature: -40 to 70 °C.
Storage Temperature: -40 to 85 °C.
Ingress Protection: IP67.
Protections include reverse polarity and short-circuit protection for both power and data.
Size: Ø185 x 59.5 mm.
Housing Material: Aluminum Alloy with Black Anodizing Finish and White PET.

Electrical Specifications:

Input Voltage (TX): 24 VDC ±10%.
Output Voltage (RX): 24 VDC ±5%.
Input Current: 12.5 A at 250W output power.

Mechanical Specifications: The mechanical specifications for both transmitter (Tx) and receiver (Rx) are identical.

Catalog excerpts

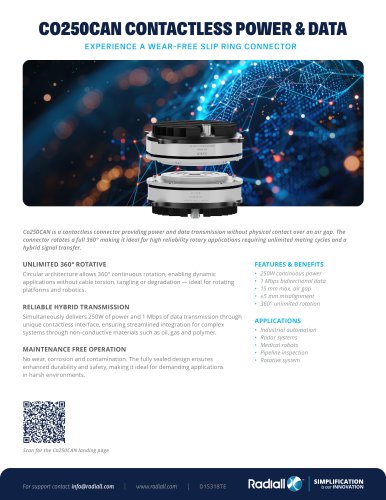

Co250CAN Is a contactless connector providing power and data transmission without physical contact over an air gap. The connector rotates a full 360° making It Ideal for high reliability rotary applications requiring unlimited mating cycles and a hybrid signal transfer. FEATURES & BENEFITS • 1 Mbps bidirectional data • Industrial automation • Radar systems • Medical robots • Pipeline inspection • Rotative system UNLIMITED 360° ROTATIVE Circular architecture allows 360° continuous rotation, enabling dynamic applications without cable torsion, tangling or degradation — ideal for rotating platforms and robotics. RELIABLE HYBRID TRANSMISSION Simultaneously delivers 250W of power and 1 Mbps of data transmission through unique contactless interface, ensuring streamlined integration for complex systems through non-conductive materials such as oil, gas and polymer. MAINTENANCE FREE OPERATION No wear, corrosion and contamination. The fully sealed design ensures enhanced durability and safety, making it ideal for demanding applications in harsh environments. Scan for the Co250CAN landing page For support contact: [email protected] Radlall^ SIMPLIFICATION

Open the catalog to page 1

Discover the future of connectivity with Radlall's contactless connectors. The Co250CAN provides power and bidirectional data transmission and offers an alternative to traditional slip ring limited with a full 360° rotation unlimited. GENERAL SPECIFICATIONS 1. Mechanical specification for Tx and Rx are the same For support contact: [email protected] www.radiall.com D1S318TE Radlall^ SIMPLIFICATION is our INNOVATION

Open the catalog to page 2
