Photometer 4040

Product catalog summary

Overview: The Photometer 4040 Version 9 is a manual photometric system designed for standard cuvettes, featuring long-lasting LED technology and continuous operation capabilities with a power bank. It includes a temperature-controlled measuring cell and a dry incubation block with six positions.

Specifications:

Type: Single-beam filter photometer
Light Source: LED with long lifetime
Wavelength: 340 nm and 390 nm - 800 nm, selected automatically via a 9-position filter wheel
Photometric Range: 0 - 3.0 A
Cuvette System: Compatible with normal standard cuvettes
Temperature Control: Electrical thermostat at 37 °C
Operator Interface: Touchscreen for direct functions and inputs
Data Presentation: Graphic display with a resolution of 240 x 128 dots
Integrated Printer: Thermal printer, 24 characters per line
Languages: English, French, German, Indonesian, Russian, Spanish, Ukrainian
Memory: Capacity for up to 231 programmable methods and 50 nonlinear calibration curves
Signal Port: Serial port for external connections
Data Logging: Stores up to 1000 results automatically

Measurement Procedures:

Absorbance and various endpoint methods
Kinetics and fixed time measurements
Turbidimetry with optional timer function
Curve fitting for nonlinear standard curves

Quality Control: Supports up to 50 methods with two control serums and Levey Jennings plot.

Power Supply: Operates on 12 VDC with options for universal power supply, power bank, solar panel, or vehicle power supply.

Dimensions and Weight: 33 cm x 34 cm x 18 cm, weighing 4.6 kg.

Manufacturer: ROBERT RIELE GmbH & Co KG, Berlin, Germany.

Catalog excerpts

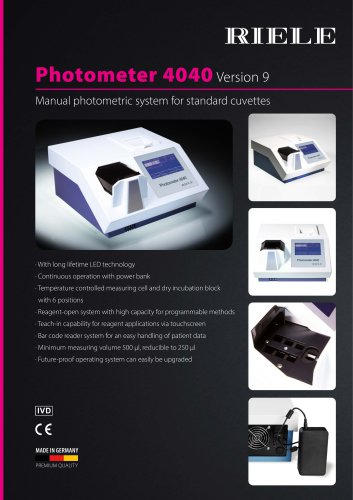

Photometer 4040 Version 9 Manual photometric system for standard cuvettes · With long lifetime LED technology · Continuous operation with power bank · Temperature controlled measuring cell and dry incubation block with 6 positions · Reagent-open system with high capacity for programmable methods · Teach-in capability for reagent applications via touchscreen · Bar code reader system for an easy handling of patient data · Minimum measuring volume 500 μl, reducible to 250 μl · Future-proof operating system can easily be upgraded MADE IN GERMANY PREMIUM

Open the catalog to page 1

Photometer 4040 Version 9Manual photometric system for standard cuvettes Type Single-beam filter photometer Light Source LED with long lifetime Wavelength Selection Automatic via 9-position filter wheel : 6 standard interference filters (HBW < 7 nm): 340 nm, 405 nm, 492 nm, 546 nm, 578 nm, and 623 nm; 3 positions for optional filters of choice Photometric Range Cuvette System Normal standard cuvettes (macro or semi-micro, disposable or special optical glass) Temperature Control Measuring cell as well as dry incubation block with 6 positions temperature controlled by electrical thermostat at 37...

Open the catalog to page 2

Photometer 4040
