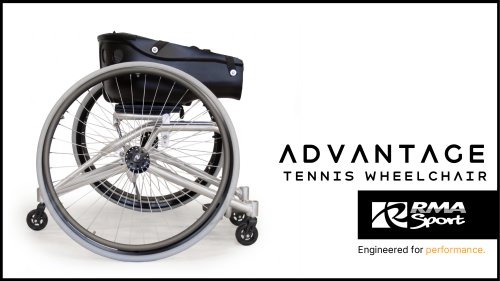

TE NNIS WHEE L CHAI R

T H E S T O R Y B E H IN D A D V A NT A G E Designed and manufactured in South Wales, the Advantage Tennis Wheelchair represents the next evolution in athlete - focused wheelchair design. Developed through collaboration with the Dan Maskell Trust, the Advantage has been engineered to give players greater adjustability, control and confidence on court. Every detail has been designed with one goal in mind: helping athletes perform at their best.

E N G I N E E R E D F E A T U RE S The Advantage has been designed around the athlete, combining precision adjustment with reliable, competition - ready performance. Performance Features 26” Complete Leopard Wheels/Tyres/Tube/ 72mm Castor Wheels ½” QR Axle Pin Cross over Straps x2 (come as standard with the bucket seat) Setup Tools Required Seat Removal 5mm Allen Key / 13mm Socket or Spanner Seat Height 6mm Allen Key / 13mm Socket or Spanner Footrest M4 Allen Key / 10mm Spanner Rear Castor Wheel Height Adjustment 19mm Socket 72mm Castor Wheel Replacement 13mm Socket and Spanner Quick Release...

P E RF OR M A NC E G E OM E T RY Key frame measurements designed to support balance, control and court performance. 1 Backrest to Axle Furthest Back: 170mm Furthest Forward: 100mm 2 Axle to Front Castor Pod To centre point: 390mm 3 3 Axle to Anti - Tip To centre point: 380mm 4 4 Axle to Footrest To centre point of Tube: 360mm +/

P E RF OR M A NC E F IT 1 Floor to top of footrest Lowest: 170mm 2 Floor to top of footrest Highest: 120mm 3 Floor to seat height Lowest: 460mm (from front edge of seat) 4 Floor to seat height Highest: 560mm (from front edge of seat)

S E A T P O S I T IO N I NG & C O NT R O L 1 Seat Rake Adjustment Back: 17 ° 2 Forward Seat Angle Forward: 20 ° 3 Backrest Height Adjustment Based on this model: 220mm Optional Extra: Custom Fitting high back (Chargeable) 4 Footrest Angle Adjustment Unlimited pivot forward/back (Fully Customisable) 4 6

P L A Y E R C L E A R A NC E & S E T U P Designed to provide the clearance, stability and adjustability needed for individual playing styles. 3 1 Width between front castors Centre to centre: 345mm 2 Front seat down tube Clearance for legs: 230mm 3 Seat width Available Widths: 12", 14.5” & 17" Note: Measurement taken at base of seat. 4 Wheel Clearance between Seat and Wheel Based on this model: 50mm either side 5 Pushrim gap 20mm / 10mm Note: Please state at time of ordering

S E A T A NG L E S E T U P Fine tune the seat angle to achieve the preferred balance, stability and playing position. ➢ Turn clockwise to raise the seat angle. ➢ Turn anticlockwise to lower the seat angle.

S E A T HE IG HT & W H E E L S E T U P Three seat height positions allow the chair to be configured in 20mm increments. 26” Complete Leopard Wheels are fitted as standard for responsive, performance - focused movement.

S E A T DE P T H S E T U P Adjust the seat depth to create the ideal balance between agility, stability and power transfer. Lift the handle and slide the seat forwards or backwards to suit the player’s preferred setup for optimum position.

F OO T RE S T S E T U P Position the footplate to support comfort, stability and efficient propulsion. Adjust the footplate angle using an Allen key. Quick Release Pin for Footrest Height Adjustment 11

P E RF OR M A NC E G A L L E RY FRONT VIEW Engineered for performance from every angle.

P E RF OR M A NC E G A L L E RY REAR VIEW Built for stability, control and confidence on court.

Part Numbers Description
