MQ50 Oxygen Concentrator for veterinary use

Product catalog summary

Overview
The MQ50 Oxygen Concentrator is designed for veterinary practices and clinics, providing a continuous and adjustable oxygen flow in a compact unit. It features easy repositioning with four castors and a carrying handle, and operates quietly at less than 40 dB(A). The device is suitable for continuous use, with specific operating conditions outlined in the user manual.

Specifications

Oxygen Flow: 1-5 l/min, continuous and adjustable.
Oxygen Concentration: >90% at 1-2 l/min, >87% at 3-5 l/min.
Outlet Pressure: 0.05 ± 0.005 MPa (0.50 ± 0.05 bar).
Rated Apparent Power: 320 VA.
Mains Supply: 220/230 V AC, 50 Hz.
Sound Pressure Level: <40 dB(A).
Operating Temperature: 10-37 °C.
Net Weight: 15.5 kg.
Dimensions: 39 × 23 × 60 cm.

Operation and Maintenance
The device displays operating status and running hours, with alarms for low oxygen concentration, low flow, abnormal pressure, overheating, sensor faults, and power failure. It includes accessible filter compartments for routine cleaning and filter replacement.

Standard Package Includes

1 × MQ50 oxygen concentrator
1 × Humidifier
2 × Nasal cannulas
1 × Coarse dust filter
1 × User manual
1 × PVC hose for the humidifier
1 × Firebreak valve

Veterinary Use
Before use, confirm the intended veterinary application with the manufacturer and ensure compatibility of all connected equipment. The MQ50 is not intended for life support and does not provide patient monitoring. Follow the manufacturer's instructions and safety precautions, such as keeping the device away from smoking, naked flames, oil, and grease. Service work should be performed by authorized personnel.

Catalog excerpts

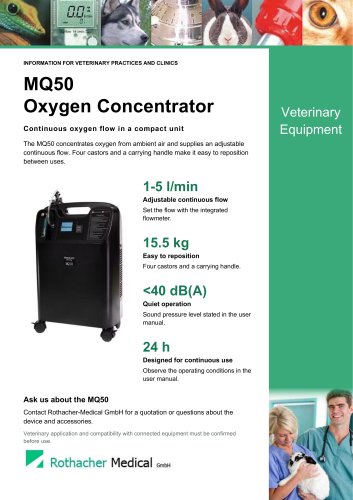

MQ50 Oxygen Concentrator for veterinary use-1

INFORMATION FOR VETERINARY PRACTICES AND CLINICS MQ50 Oxygen Concentrator Continuous oxygen flow in a compact unit The MQ50 concentrates oxygen from ambient air and supplies an adjustable continuous flow. Four castors and a carrying handle make it easy to reposition between uses. 1-5 l/min Adjustable continuous flow Set the flow with the integrated flowmeter. 15.5 kg Easy to reposition Four castors and a carrying handle. <40 dB(A) Quiet operation Sound pressure level stated in the user manual. 24 h Designed for continuous use Observe the operating conditions in the user manual. Ask us about the MQ50 Contact Rothacher-Medical GmbH for a quotation or questions about the device and accessories. Veterinary application and compatibility with connected equipment must be confirmed before use. Veterinary Equipment

Open the catalog to page 1

MQ50 Oxygen Concentrator for veterinary use-2

Technical data and equipment MQ50 at a glance Manufacturer: Sysmed (China) Co., Ltd. Data from the MQ50 user manual V1.1 under the specified operating conditions. Sound pressure measurement uncertainty: 2 dB(A). Operation Continuous operation The display shows operating status and running hours. Visual and/or audible alarms indicate low oxygen concentration, low flow, abnormal pressure, overheating, sensor faults and power failure. Accessible filter compartments support routine cleaning and filter replacement. Standard package 1 x MQ50 oxygen concentrator 1 x Coarse dust filter 1 x User manual...

Open the catalog to page 2
