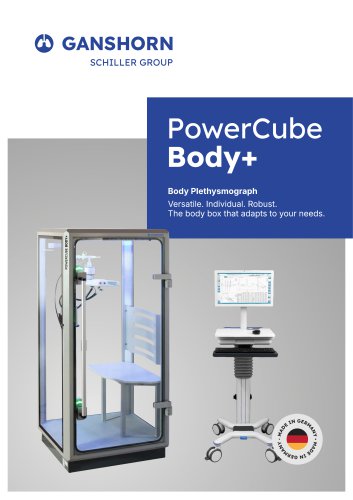

SCHILLER GROUP Body Plethysmograph Versatile. Individual. Robust. The body box that adapts to your needs.

Strong and bafanced door closing THE FUTURE OF LUNG DIAGNOSTICS Provo.X - Broncho Provocation System A simple and puristic design that fits perfectly into the medical workflow. The first body plethysmograph based on ultrasound technology — highly individual and robust — designed for measuring most PFT parameters at a single workstation. PowerCube Body+ hardware and Ganshorn.LFX software can be easily configured to meet specific requirements and preferences. With enhanced long-term stability and advanced analysis algorithms, users can instantly identify asthma, COPD, restrictions, or combinations...

SharpFlowThe GANSHORN ultrasound technology Two diagonally opposed ultrasonic transducers alternately transmit and receive ultrasonic waves. Without airflow in the breathing tube, the travel time of the ultrasonic waves is the same in both directions. An airflow in the tube accelerates the waves in one direction and slows them down in the other. The flow rate can be calculated from the difference in the travel times of the ultrasonic waves. The measured travel times are used to calculate flow rate and gas density, allowing changes in the concentration of exhaled gases to be determined directly...

q LFX Software platform Standard cabin This setup is exclusively equipped with spirometry and body plethysmography measurement capabilities and is ideal for upgrading existing infrastructure. XL cabin GANSHORN also offers a larger cabin to suit your needs. Please contact our sales department for more information. Preliminary patient overview Wheelchair cabin For the PowerCube Body+, you can order the cabin in a truly barrier-free version. This is the only way to measure the real values of TLC, resistance and volume without having to interpolate them. Available as PowerCube Body+ Cabin with curved...

The GANSHORN PowerCube Body+ offers an exceptional range of testing options, enabling comprehensive assessment of lung function -from basic breathing tests to advanced measurements like lung volumes, airway resistance, and bronchial provocation. Parameter Testing example capabilities GANSHORN has been a leader in pulmonary diagnostics since 1982, offering advanced systems for spirometry, body plethysmography, diffusion, and more. All key components are made in Germany, with devices developed and produced in Bavaria. Today, GANSHORN operates globally, with strong markets across Europe, Asia, the...
