seca 704

seca 704

seca 704

Product catalog summary
Product Overview: The seca 704 is an EMR-validated column scale with a 300 kg capacity and an included measuring rod. It is designed for high precision and robustness, featuring a non-tilting base made of heavy-duty cast iron and a powder-coated finish that resists impacts and scratches.
Key Specifications:
  • Capacity: 300 kg
  • Graduation: 50 g < 150 kg > 100 g
  • Dimensions: 360 x 930 x 520 mm
  • Platform Dimensions: 335 x 80 x 345 mm
  • Net Weight: 14.9 kg
  • Power Supply: Batteries, optional power adapter
Functions and Features:
  • Wide range of functions including BMI calculation, Pre-TARE, HOLD, Auto-HOLD, and a mother+child function.
  • Three-step damping system to filter out patient movements.
  • EMR-validation allows direct data transmission to electronic medical records, enhancing workflow efficiency and reducing errors.
  • Optional interfaces include Wi-Fi/Ethernet with seca 452.
Measuring Rod: The included telescopic measuring rod seca 220 has a measuring range of 60 – 200 cm with a graduation of 1 mm.
Integration and Accessories:
  • Can be integrated into hospital information systems for seamless data transfer.
  • Optional accessories include a switch-mode power adapter (seca 400), power adapter (seca 447), and interface module (seca 452).
Compliance: The seca 704 is certified under the Medical Device Regulation (MDR).
See more

Catalog excerpts

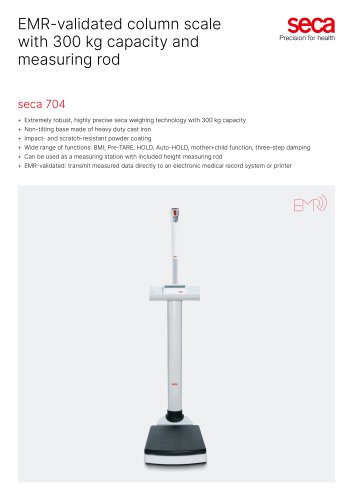

seca 704-1

EMR-validated column scale with 300 kg capacity and measuring rod seca 704 + Extremely robust, highly precise seca weighing technology with 300 kg capacity + Non-tilting base made of heavy duty cast iron + Impact- and scratch-resistant powder coating + Wide range of functions: BMI, Pre-TARE, HOLD, Auto-HOLD, mother+child function, three-step damping + Can be used as a measuring station with included height measuring rod + EMR-validated: transmit measured data directly to an electronic medical record system or printer

 Open the catalog to page 1
seca 704-2

Stability conveys a secure feeling and inspires confidence in the measuring results and for the treating physician. That's why the seca 704 has a cast-iron undercarriage with a non-slip rubber pad. Even patients affected by obesity up to 300 kg can be weighed safely and accurately. The fine graduation shows that the column scale is not only heavy-duty and durable, but also meets all requirements for accuracy. For the calculation of the BMI, the height can be read and entered from a retrofittable measuring rod. In addition to BMI calculation, many other functions facilitate everyday work: For...

 Open the catalog to page 2

All Seca catalogs and technical brochures

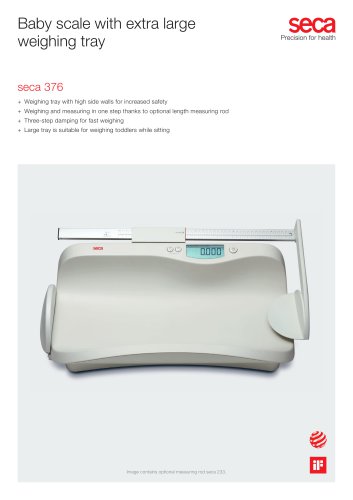

  1. seca 376
