Image Intensifier

Product catalog summary
Image Intensifier Specifications
  • Types: NK-33XZ, NK-23XZ (P3H), NK-23XZ (P3)
  • Input Voltage: 24VDC (±1VDC) for all types
  • Output Image Diameter: 25±0.5mm for NK-33XZ and NK-23XZ (P3H), 20±0.5mm for NK-23XZ (P3)
  • Effective Incident Field: 303 ± 3mm for NK-33XZ, 215 ± 3mm for NK-23XZ (P3H), 215 ± 3mm for NK-23XZ (P3)
  • Central Resolution: Varies by type and measurement, with NK-33XZ reaching up to 68 lp/cm at 12cm
Replacement Models:
  • TH9428, TH59428, TH-23XZSTTH9432 QX, TH9436QX, TH9438QX, TH9438HX, TH59438
Applications:
  • Includes models such as E5765HD, E5884HD, E5830HD, E5830SD, E5804HD, E5804SD, E5764HD, E5764SD
See more

Catalog excerpts

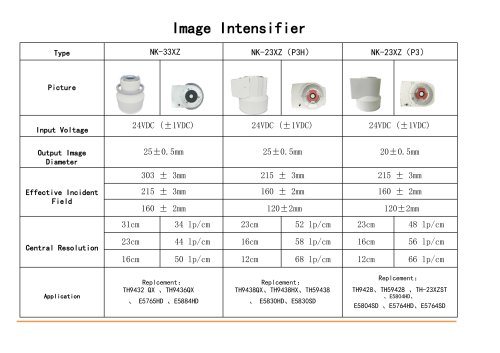

Image Intensifier-1

Input Voltage Output Image Diameter Effective Incident Field Central Resolution

 Open the catalog to page 1
