X-Ray Generator
1 / 4 PagesView full catalog
X-Ray Generator
Product catalog summary
Product Overview
This document provides detailed specifications and configurations for a high-frequency X-ray generator used in medical applications such as X-ray machines, DR, and CT. The generator offers stable X-ray output, low radiation dose, high accuracy, and clear imaging. It includes customizable features like fluoroscopy and base mobility.
This document provides detailed specifications and configurations for a high-frequency X-ray generator used in medical applications such as X-ray machines, DR, and CT. The generator offers stable X-ray output, low radiation dose, high accuracy, and clear imaging. It includes customizable features like fluoroscopy and base mobility.
Specifications
- Power Output: Available in 20kW, 32kW, and 50kW models.
- Supply Voltage: 220VAC±10% or 380VAC±10%, with frequency 50/60Hz±1%.
- Output Frequency: 40kHz±1%.
- Tube Voltage Accuracy: ±3%.
- Tube Current Accuracy: Less than ±4% for ms>5 and less than ±13% for ms≤5.
- Anode Speed: 2800r/min.
- Operating Keyboard: Full touch keyboard with one-click automatic parameter correction.
Exposure Parameters
- Exposure Mode: kV-mA-ms, kV-mAs, APR.
- Tube Voltage Range: 40-125kV for 20kW, 40-150kV for 32kW and 50kW, with 1kV steps.
- Tube Current Range: 50-200mA for 20kW, 50-320mA for 32kW, 10-640mA for 50kW.
- Exposure Time Range: 2-2000ms for 20kW, 2-5000ms for 32kW, 1-10000ms for 50kW.
- mAs Range: 1-200mAs for 20kW, 1-250mAs for 32kW, 0.1-640mAs for 50kW.
- Exposure Time Accuracy: ≤±5%+0.2ms.
- mAs Accuracy: ≤±5%+0.2mAs.
- APR Storage Capacity: 2400 data entries.
- Exposure Interval: 15 seconds below 100mAs, 30 seconds above 100mAs (80kV test).
Auxiliary and Optional Features
- Auxiliary Output Power: 24VDC 2A, 220VAC 5A for 20kW and 32kW; 24VDC 300mA, 220VAC 5A for 50kW.
- Optional Parameters: AEC density -3 to +3, power supply -15/+15V.
- Communication Interface: RS-232.
- Function Customization: Various interfaces can be customized according to customer needs.
See more
Catalog excerpts
Product Name Specification Configuration Used for medical applications, such as X-ray machines, DR, CT, etc. 触摸屏控制台 （标配） Touch screen console （Standard configuration） 透视功能可定制，以适配不同的应 用。 The fluoroscopy function can be customized to adapt to different applications. Mini Console（customized） 高频电源，输出 X 射线波形稳定， 辐射剂量低，精度高，成像更清晰。 High frequency power supply, stable output X-ray waveform,
Open the catalog to page 1All Shandong Newheek Image Equipment catalogs and technical brochures

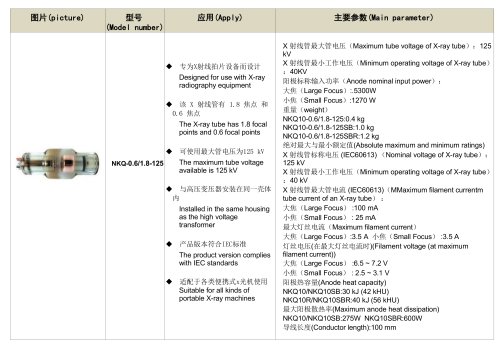

X-ray tube assembly10 Pages
