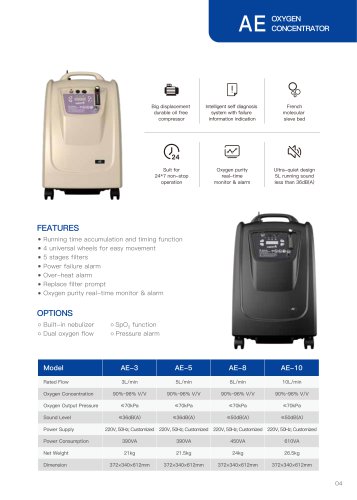

AE Oxygen Concentrator Catalog

Product catalog summary

Overview: This document provides technical specifications and features of various models of oxygen concentrators, highlighting their capabilities and functionalities.

Options: The oxygen concentrators come with several options including running time accumulation and timing functions, universal wheels for easy movement, five-stage filters, power failure and over-heat alarms, filter replacement prompts, real-time oxygen purity monitoring with alarms, built-in nebulizers, SpO2 function, dual oxygen flow, and pressure alarms.

Features: Key features include a big displacement durable oil-free compressor, French molecular sieve bed, intelligent self-diagnosis system with failure information indication, suitability for 24/7 non-stop operation, ultra-quiet design with sound levels less than 36dB(A) for 5L models, and real-time oxygen purity monitoring with alarms.

Specifications: The document details specifications for different models (AE-3, AE-5, AE-8, AE-10) including rated flow (ranging from 3L/min to 10L/min), oxygen concentration (90%~96% V/V), oxygen output pressure (≤70kPa), sound levels (≤36dB(A) to ≤50dB(A)), power supply (220V, 50Hz; customized), power consumption (ranging from 300VA to 610VA), net weight (ranging from 14.4kg to 26.5kg), and dimensions (372×340×612mm for most models).

Additional Features for AE-5-S Model: The AE-5-S model includes a built-in nebulizer, five-stage filters, and a pressure alarm, with a sound level of ≤45dB(A) and a net weight of 14.4kg.

Catalog excerpts

oxygenconcentrator Big displacement durable oil free compressor Intelligent self diagnosis system with failure information indication French molecular sieve bed S3 Oxygen purity real-time monitor & alarm qo Ultra-quiet design 5L running sound FEATURES • Running time accumulation and timing function • 4 universal wheels for easy movement • Power failure alarm • Over-heat alarm • Replace filter prompt • Oxygen purity real-time monitor & alarm o Built-in nebulizer o Sp02 function o Dual oxygen flow o Pressure alarm

Open the catalog to page 1

French molecular sieves bed Intelligent self diagnosis system with failure information indication Suit for 24*7 non-stop operation stages filters FEATURES • Running time accumulation and timing function • Power failure alarm • Over-heat alarm • Replace filter prompt • Oxygen purity real-time monitor & alarm • Built-in nebulizer Rated Flow Oxygen Concentration Oxygen Outlet Pressure Nebulization Outlet Pressure Sound Level Power Supply Power Consumption

Open the catalog to page 2

AE Oxygen Concentrator Catalog

AE Oxygen Concentrator Catalog

Catalog excerpts

All Shenyang Aerti Tech catalogs and technical brochures
