Veterinary Oxygen Concentrator AE-5 AE-10 AM-3

1 / 4 PagesView full catalog

Veterinary Oxygen Concentrator AE-5 AE-10 AM-3

Product catalog summary

Pet Oxygen Therapy Home Use Solution

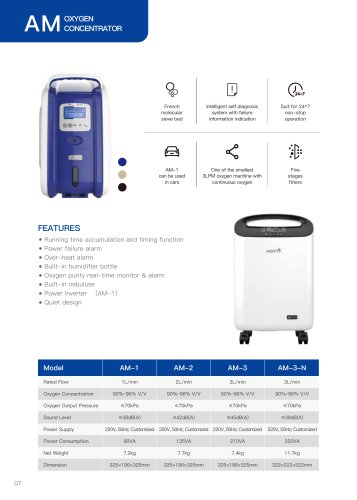

Model AM-3: Rated flow of 3L/min, oxygen concentration between 90% and 96% V/V, output pressure ≤70kPa, sound level ≤45dB(A), power supply of 220V, 50Hz (customizable), power consumption of 210VA, net weight of 7.4kg, and dimensions of 325×196×325mm.
Model AE-5: Rated flow of 5L/min, oxygen concentration between 90% and 96% V/V, output pressure ≤70kPa, sound level ≤36dB(A), power supply of 220V, 50Hz (customizable), power consumption of 390VA, net weight of 21.5kg, and dimensions of 372×340×612mm.

Applications: Atomization treatment mask, foldable chamber, collar oxygen therapy, and veterinary use.

Hospital Use Solution

Model AE-5: Rated flow of 5L/min, oxygen concentration between 90% and 96% V/V, output pressure ≤70kPa, sound level ≤36dB(A), power supply of 220V, 50Hz (customizable), power consumption of 390VA, net weight of 21.5kg, and dimensions of 372×340×612mm.
Model AE-10: Rated flow of 10L/min, oxygen concentration between 90% and 96% V/V, output pressure ≤70kPa, sound level ≤50dB(A), power supply of 220V, 50Hz (customizable), power consumption of 610VA, net weight of 24.5kg, and dimensions of 372×340×612mm.

Applications: Surgical anesthesia oxygen supply, intensive care unit (ICU), respiratory disease treatment, and emergency rescue.

Catalog excerpts

Veterinary Oxygen Concentrator AE-5 AE-10 AM-3-1

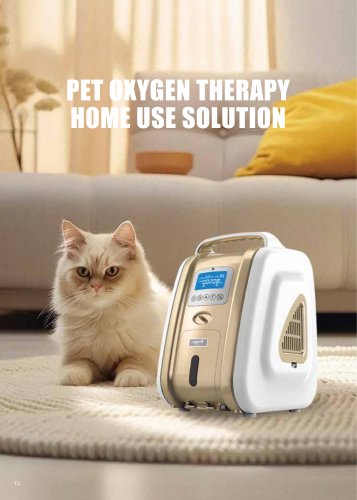

PET OXYGEN THERAPY HOME USE SOLUTION

Open the catalog to page 1

Veterinary Oxygen Concentrator AE-5 AE-10 AM-3-2

oxygen concentrator atomization treatment mask oxygen therapy collar oxygen therapy foldable chamber oxygen therapy Rated Flow Oxygen Concentration Oxygen Output Pressure Sound Level Power Supply Power Consumption Net Weight Dimension

Open the catalog to page 2
