4K Stabilized Surgical Head Camera SM-H1

Product catalog summary

Overview
The SMO Medical Surgical Video Solutions introduces the SM-H1 Advanced Version, a 4K Stabilized Surgical Head Camera designed to provide a surgeon’s-eye view with enhanced stability and clarity. It features true 4K gimbal-stabilized HDMI output and onboard recording capabilities, tailored to fit seamlessly into the surgical workflow.

Main Features

Stable First-Person Perspective: The camera uses a gimbal-assisted system to follow natural head movements, ensuring a steady view of the operative field.
Recording and Live Review: Capable of recording 4K video to removable storage while simultaneously sending a real-time HDMI signal to a monitor or recorder.

System Overview & Specifications

4-Axis Stabilizing Gimbal Camera: Includes an adjustable surgical headlight for optimal visibility.
Clinical Workflow: The process involves wearing and aligning the device, recording or outputting video, and reviewing and sharing footage for educational and documentation purposes.

Key Specifications

Video Resolution: 3840 × 2160 at 30 fps
Stabilization: 3-axis gimbal-assisted
Output: HDMI real-time output
Storage: TF card support up to 512 GB
Power: 5000 mAh battery with approximately 6 hours of operation
Control: Local control box and 2.4G remote
Headlight: 5000 ± 500 K; approximately 40,000 lux at 20 cm
Working Distance: Three focus ranges: 8–60 cm

Standard Package Includes

Head-mounted camera and headlight assembly
Control box with built-in battery
3 m HDMI cable
High-speed TF card
2.4G wireless remote controller
Spare lens
User manual and quick guide

Applications
The device is suitable for various surgical fields including facial, orthopedic, ENT, cardiac, and spine surgeries.

Catalog excerpts

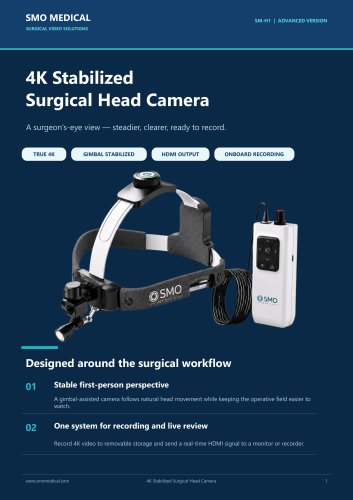

4K Stabilized Surgical Head Camera SM-H1-1

SURGICAL VIDEO SOLUTIONS 4K Stabilized Surgical Head Camera A surgeon’s-eye view — steadier, clearer, ready to record. TRUE 4K GIMBAL STABILIZED HDMI OUTPUT ONBOARD RECORDING Designed around the surgical workflow 01 Stable first-person perspective One system for recording and live review A gimbal-assisted camera follows natural head movement while keeping the operative field easier to watch. Record 4K video to removable storage and send a real-time HDMI signal to a monitor or recorder. 4K Stabilized Surgical Head Camera

Open the catalog to page 1

4K Stabilized Surgical Head Camera SM-H1-2

SYSTEM OVERVIEW & SPECIFICATIONS Built for clear surgical documentation Wear it. Align it. Record it. Share the surgeon’s view. 4-axis stabilizing gimbal camera + adjustable surgical headlight A straightforward clinical workflow 0 1 WEAR & ALIGN Adjust the headband and working distance for a natural line of sight. Capture 4K video locally or connect HDMI for live display and recording. HDMI real-time output REVIEW & SHARE Export footage for teaching, documentation, case review, and presentation. STANDARD PACKAGE Working distance Local control box + 2.4G remote Three focus ranges: 8–60 cm Head-mounted...

Open the catalog to page 2
