SM-BC4K-S_4K_Surgical_Field_Camera_Brochure_EN

Product catalog summary

Overview: The SMO Medical Surgical Imaging 4K Surgical Field Camera (SM-BC4K-S) is designed for high-detail imaging in surgical environments, suitable for visualization, teaching, and documentation. It offers true 4K resolution at 3840 × 2160 pixels and 30 frames per second, ensuring stable and interference-resistant transmission through a 20-meter HDMI 2.0 optical cable.

Key Features:

Resolution: True 4K (3840 × 2160 at 30 fps) and 1080p60 for smoother motion.
Zoom: 20× optical zoom with an additional 12× digital zoom, providing a focal length range of 4.4–88.4 mm.
Image Sensor: 8.51 MP Exmor R CMOS sensor for high-quality imaging.
Video Output: HDMI 4K video output.
Control Options: Includes auto and manual focus, exposure settings, and image control features such as zoom, focus, shutter, brightness, color saturation, and freeze. Control is available via camera buttons, a 2.4 GHz wireless remote, or project-based RS485/Sony VISCA.

Technical Specifications:

Imaging Module: Sony FCB-CR8530.
Power Supply: DC 12 V with a supplied 100–240 VAC adapter, 12 V / 3.34 A.
Dimensions and Weight: Length 250 mm, height 300 mm, handle 140 mm, and weight approximately 2.8 kg.
Operating Environment: 0–40 °C operating temperature, −20–60 °C storage temperature, and 30–95% relative humidity.
Compliance and Warranty: CE (EMC + LVD) assurance with a 2-year warranty.

Standard Package Includes: Camera unit with bracket and disinfectable handle, 2.4 GHz remote, power adapter, 5 m power/control cable, and 20 m HDMI 2.0 optical cable.

Catalog excerpts

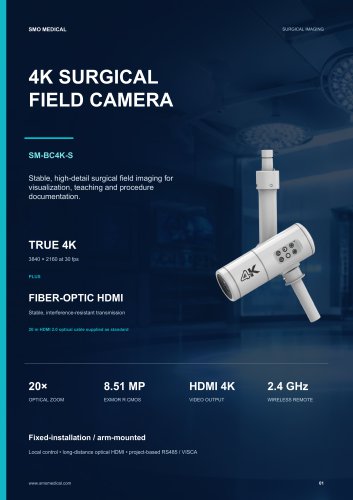

SM-BC4K-S_4K_Surgical_Field_Camera_Brochure_EN-1

SURGICAL IMAGING 4K SURGICAL FIELD CAMERA SM-BC4K-S Stable, high-detail surgical field imaging for visualization, teaching and procedure documentation. FIBER-OPTIC HDMI Stable, interference-resistant transmission 20 m HDMI 2.0 optical cable supplied as standard OPTICAL ZOOM VIDEO OUTPUT WIRELESS REMOTE Fixed-installation / arm-mounted Local control • long-distance optical HDMI • project-based RS485 / VISCA

Open the catalog to page 1

SM-BC4K-S_4K_Surgical_Field_Camera_Brochure_EN-2

IMAGING PERFORMANCE See the field in the mode the procedure needs. Maximum detail Smoother motion Optical + digital zoom Core functions FOCUS EXPOSURE Auto Focus • One Push Focus • project-dependent Auto / manual shutter • brightness control • white balance manual / semi-auto IMAGE CONTROL Zoom • focus • shutter • brightness • color saturation • freeze CONTROL OPTIONS Camera buttons • standard 2.4 GHz remote • project RS485 / Sony VISCA Technical specifications Dimensions Imaging module Sony FCB-CR8530 Length 250 mm; height 300 mm; handle 140 mm Image sensor 1/2.5-type Sony Exmor R CMOS; Weight...

Open the catalog to page 2
