SOMNO HD eco Pediatric

Product catalog summary

Overview: SOMNOmedics is a leader in pediatric sleep diagnostics, offering compact and innovative devices tailored for children. Their products include small devices with child-specific sensors and camera options, making them a preferred choice in the field.

Device Specifications: The SOMNO HD eco is a compact device measuring 110 × 74 × 24 mm and weighing 190 g, including the battery. It is suitable for children from the first month of life and features automatic sensor and electrode recognition, colored LED signal control, and a preloaded newborn template in the DOMINO sleep analysis software. The device supports telemetric data transfer and stores data on an SD card, ensuring full mobility for the child.

Features: The device includes many built-in sensors, reducing the need for cables and increasing comfort. It offers real-time wireless data transmission and a wide range of pediatric sensors. External signals can be integrated, such as a CO2 monitor and up to 16 additional signals via an ADC board. True sound recording is possible with an infrared video camera.

Software Features: The DOMINO software includes a specific analysis template for newborns and options for creating generic channels for undefined apnea and periodic breathing events. It allows for alternative breathing sources if the patient cannot tolerate standard equipment.

Additional Equipment: The device supports various sensors and equipment, including EEG/EOG cup electrodes, thermistor and nasal cannula, inductive effort belt, pulse oximeter clips, and more. It is modular, allowing for respiratory screening to PSG.

Safety and Usage: For newborns and babies, the unit should be placed next to the bed and used under observation to prevent strangulation risks. It supports long-term measurement up to 48 hours with an external battery.

Contact Information: SOMNOmedics AG is based in Germany and can be contacted via phone or email for more information.

Catalog excerpts

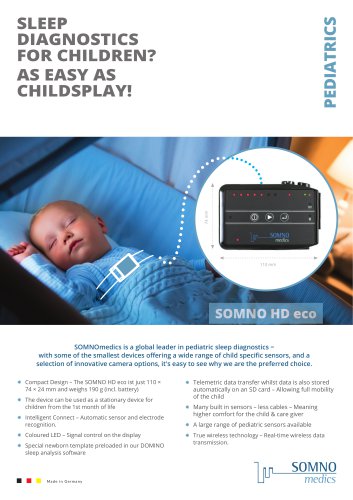

* Compact Design - The SOMNO HD eco ist just HO x 74 x 24 mm and weighs 190 g (incl. battery) * The device can be used as a stationary device for children from the 1st month of life * Intelligent Connect - Automatic sensor and electrode recognition. * Coloured LED - Signal control on the display * Special newborn template preloaded in our DOMINO sleep analysis software * Telemetric data transfer whilst data is also stored automatically on an SD card - Allowing full mobility of the child * Many built in sensors - less cables - Meaning higher comfort for the child & care giver * A large range of pediatric sensors available * True wireless technology - Real-time wireless data transmission.

Open the catalog to page 1

...because even astronauts and princesses need a good night‘s sleep EEG/EOG cup electrodes AASM PSG Headbox 17 EXG (10 × EEG/EOG, Ref + GND, 2 × EMG, 1 x ECG (optional syst./diast. BP) OR EEG 32 Headbox 32 channels (25 × EEG/EOG, 6 × EMG, 1 × ECG) Thermistor & nasal cannula & retaining clip for simultaneous application Microphone for snoring detection Syst./diast. blood pressure (optional) (validated from 5 years) Inductive eﬀort belt 0297 External body position sensor Finger clip soft silicone for pulse oximeter or NONIN ﬂexible ﬁnger clip EOG l EOG r EMG Active PLM/EMG sensors Long-term measurement...

Open the catalog to page 2
