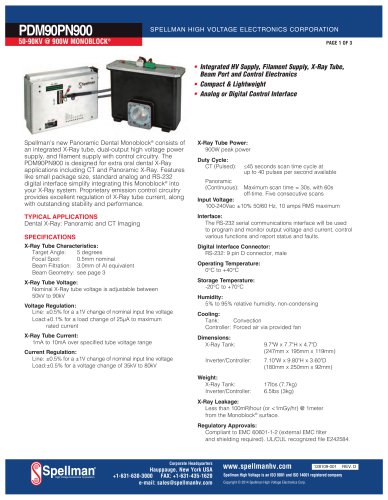

Integrated HV Supply, Filament Supply, X-Ray Tube, Beam Port and Control ElectronicsCompact & Lightweight Analog or Digital Control Interface Spellman’s new Panoramic Dental Monoblock® consists of an integrated X-Ray tube, dual-output high voltage power supply, and filament supply with control circuitry. The PDM90PN900 is designed for extra oral dental X-Ray applications including CT and Panoramic X-Ray. Features like small package size, standard analog and RS-232 digital interface simplify integrating this Monoblock® into your X-Ray system. Proprietary emission control circuitry provides excellent regulation of X-Ray tube current, along with outstanding stability and performance. X-Ray Tube Power: 900W peak power Duty Cycle: CT (Pulsed): <45 seconds scan time cycle at up to 40 pulses per second available (Continuous): Maximum scan time = 30s, with 60s off-time. Five consecutive scans Input Voltage: TYPICAL APPLICATIONS Dental X-Ray: Panoramic and CT Imaging SPECIFICATIONS X-Ray Tube Characteristics: Target Angle: 5 degrees Focal Spot: 0.5mm nominal Beam Filtration: 3.0mm of Al equivalent Beam Geometry: see page 3 X-Ray Tube Voltage: Nominal X-Ray tube voltage is adjustable between 50kV to 90kV Voltage Regulation: Line: ±0.5% for a ±1V change of nominal input line voltage Load:±0.1% for a load change of 25qA to maximum rated current X-Ray Tube Current: 1mA to 10mA over specified tube voltage range Current Regulation: Line: ±0.5% for a ±1V change of nominal input line voltage Load:±0.5% for a voltage change of 35kV to 80kV The RS-232 serial communications interface will be used to program and monitor output voltage and current, control various functions and report status and faults. Digital Interface Connector: Operating Temperature: Storage Temperature: 5% to 95% relative humidity, non-condensing Tank: Convection Controller: Forced air via provided fan Weight: X-Ray Tank: 17lbs (7.7kg) X-Ray Leakage: Less than 100mR/hour (or <1mGy/hr) @ 1meter from the Monoblock® surface. Regulatory Approvals: Compliant to EMC 60601-1-2 (external EMC filter and shielding required). UL/CUL recognized file E242584. m High Voltage Electronics Corporation Corporate Headquarters Hauppauge, New York USA -631 -630-3000 FAX: +1 -631 -435-1620 e-mail: [email protected] www.spellmanhv.com Spellman High Voltage is an ISO 9001 and ISO 14001 Copyright © 2014 Spellman High Voltage Electronics Corp.

ANALOG INTERFACE— RS-232 DIGITAL INTERFACE— J5 9 PIN MALE D CONNECTOR Spell mart I High Voltage Electronics Corporation Corporate Headquarters Hauppauge, New York USA -631 -630-3000 FAX: +1 -631 -435-1620 e-mail: [email protected] www.spellmanhv.com Spellman High Voltage is an ISO 9001 and ISO 14001 Copyright © 2014 Spellman High Voltage Electronics Corp.

PDM Generator Tank DIMENSIONS: in.[mm] PDM Inverter/Controller DIMENSIONS: in.[mm] Spellman High Voltage is an ISO 9001 and ISO 14001 Copyright © 2014 Spellman High Voltage Electronics Corp. Corporate Headquarters
