AUTOMATIC AND MANUAL DOOR SOLUTIONS

STANLEY ACCESS TECHNOLOGIES AUTOMATIC AND MANUAL DOORS When it comes to automatic door openings, STANLEY is setting the standard for tough, dependable, long-lasting performance. Since we invented the first swing door operator in 1932, we’ve grown into the largest manufacturer, installer and service provider of automatic doors in North America. From engineering and development, to product delivery and quality, STANLEY is constantly moving forward with innovative solutions you can depend on. SERVICE AND INSTALLATION As a service customer, you will receive the expertise of the industry’s largest...

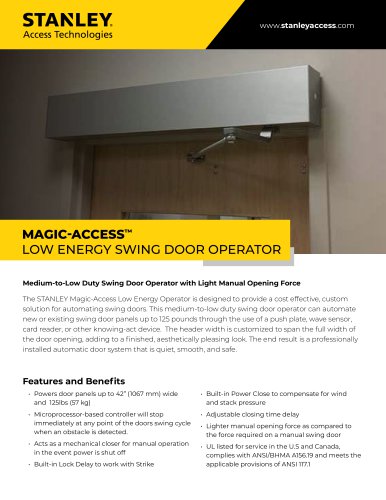

SELECTION GUIDE SWING DOOR SYSTEMS AND OPERATORS Express-Swing Door System Magic Force Operator Magic Access Operator Magic Swing Operator Retrofit Ready Surface Mounted Overhead Concealed Bottom Load Application Push or Pull Application Door Width up to 48" Door Width Greater than 48’ Safety Sensor Compatibility Code Compliance Listed for Fire Rated Doors Fully Automatic (ANSI 156.10) *Sensors required **Overhead Only *** Frame, opening REVOLVERS Features Three Wing All Glass Version Available Four Wing Automatic Security Disclaimer: These charts are to illustrate a standard produ

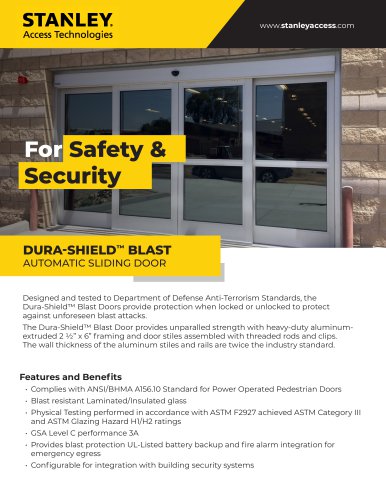

Single Slide Slim Line Header Dura-Shield Blast Dura-Shield Ballistic Surface Mounted Retrofit Ready SLIDING AUTOMATIC DOORS Non-Breakout Fixed Sidelight Access Control Option (Panic Hardware and Solenoid Lock) Extra Heavy Duty Construction Glazing: 9/16" (Laminated) Glazing: 5/8" (Insulated) Code Compliance Clean Room Certified Wind Pressure Rated (Hurricane) Impact Rated (Hurricane) I - Impact NI - Non Impact * Consult you local STANLE

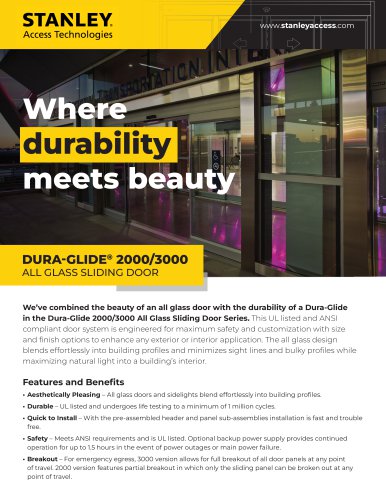

Automatic Sliding Doors STANDARD MODEL: DURA-GLIDE 2000/3000 AND DURA-GLIDE 2000/3000 ALL GLASS ~7’ TO ~9’ TO ~14’ ~10’ SINGLE SLIDE All Glass SINGLE SLIDE Differentiation: 2000 Model (drawing shown): SX Panel breaks out. 3000 Model: All panels (SX and SO) break out. All components fully tested and preassembled at factory for fast, trouble-free installation. Class 1 and Class 10 clean room certified. Models: Designer Package: Operator only, with breakout. Utility type and SLH Slim Line Header: Operator only, without breakout. All Glass (2000 drawing shown): All glass doors and sidelights, with...

HEAVY DUTY: DURA-GUARD 2000/3000 ~10’ TO ~14’ SINGLE SLIDE Differentiation: Rugged construction design to lower costly door repairs resulting from abuse and collisions with carts. Configured to open quickly to prevent collisions. 2000 Model (drawing shown): SX Panel breaks out. 3000 Model: All panels (SX and SO) break out. Clear Door Opening: Bipart 44” - 68” | Single Slide: 33.1” - 45.1” Applications: Home centers, grocery stores and warehouses where automatic doors are subjected to abuse. More Information: stanleyaccess.com/heavy-duty IMPACT AND NON-IMPACT HURRICANE RATED: DURA-STORM 2000/3000...

Automatic Sliding and folding Doors PEDESTRIAN CONTROL: BYPASS Differentiation: To direct traffic flow, the right side panel is used for ingress and the left for egress. Continuous header for both entry and exit simplifies building design. Available in full break out for emergency egress. Clear Door Opening: Entrance 36” - 48”, Exit 33.5” - 45.5”. Full Break Out version 32.1” to 44.1” Applications: Heavy pedestrian traffic where rough opening space is restricted. More Information: stanleyaccess.com/bypass Differentiation: Allows for two-way traffic where there is a restricted rough opening. Panels...

TELESCOPING 5200/5300 Differentiation: Larger clear door opening than a single slide or bipart sliding door. Synchronized moving panels. 5200 Model (drawing shown) SX panels break out. 5300 Model: All panels break out. Class 10 clean room certified. Clear Door Opening: 3-Panel 44.56” to 60.56”, 6-Panel: 59-9/16” to 91-9/16” Applications: Clean rooms and high traffic retail, upscale professional and institutional locations where space is limited. More information: stanleyaccess.com/telescopic-5200-5300 ~10’ TO ~14’ DURA-MAX 5400 Differentiation: Synchronized overlapping panels provide the widest...

AUTOMATIC SWING DOOR OPERATORS AND SYSTEMS VERSATILE, LIGHT TO HEAVY DUTY, LOW ENERGY AND FULLY AUTOMATIC: MAGIC FORCE Differentiation: Allows for maximum flexibility at design phase and upon installation because it is field adjustable to work as both full energy (motion activated) or low energy (knowing act activated) automation. Can be surface mounted, overhead concealed or bottom loaded. Swing Door Panels: Up to 48” Door Panel Weight: Up to 350lbs ~10’ TO ~14’ ~14’ ~10’ TO Applications: Supermarkets, department stores, airports, office buildings, public buildings and schools. New construction...

AUTOMATIC DOOR OPTIONS AND ACCESSORIES PUSH LOW ENERGY CONTROLS AND ACTIVATION Touchless Wave SENSORS: Swing, Slide and Fold Doors SWING DOORS: Low Energy PRESENCE SENSORS Swing-Guard LE keeps the door open when a pedestrian is in its swing path. SWING DOORS: FULLY AUTOMATIC PRESENCE SENSORS Swing-Guard FE is designed to detect moving or stationary people in the swing path of the door and stays active even when the door is in motion. SLIDE DOORS: MOTION ACTIVATION SU-100 provides a wide and deep activation zone to assure doors are fully opened while someone is entering or exiting. SLIDE DOORS:...

MANUAL SWING AND SLIDE Doors INTENSIVE CARE UNIT: DURA-CARE 7000 SERIES SWING: 7400 Series single, pair or uneven pair configurations with a heavy-duty continuous hinge and built-in concealed closer. ANSI/UL 1784 for Leakage Rated Door Assemblies: (“Smoke and Draft”). ~84” TO ~108” SLIDE: 7000 (drawing shown left), 7200 and 7300 (drawing shown right) Series are specifically designed to meet the “side hinge swinging” requirement for healthcare facilities. Available in 2-, 3- and 4-panel design. TL versions are trackless, FBO versions feature full break out and/or partial breakout, positive latching...
