Superhandy Transverse Mount for Truck Loader Leaf Vacuum GUO143

Product catalog summary

Introduction
This document is the operator's manual for the GUO143 Truck Loader Leaf Vacuum. It emphasizes the importance of understanding all instructions before operation to prevent serious personal injury. Users are advised to keep the manual accessible for future reference and servicing.

Specifications and Components
The manual includes a part list for assembly, featuring components such as the Mount Arm Base Frame, M12x25 Bolts, M8x65 Bolts, and M8 Nuts. It also lists recommended tools, including 12mm, 13mm, and 19mm open-end wrenches.

Assembly Instructions

Remove the two D-pins from the mount arm, insert the base frame into the mount arm, and secure it with the D-pins. Choose the appropriate fixing hole based on the truck's height for optimal adaptation.
Slide the telescoping segment to the desired position and secure it by fastening four M12x25 bolts into the mount arm.
Remove the two hand bolts from the transverse mount, attach the transverse mount onto the truck, and thread the hand bolts back into the transverse mount.
Secure the leaf vacuum to the transverse mount using four M8x65 bolts and four M8 nuts.

Contact Information
For support, users can contact Great Circle USA at 1-866-493-0524 or [email protected]. Additional resources are available at www.superhandyus.com.

Catalog excerpts

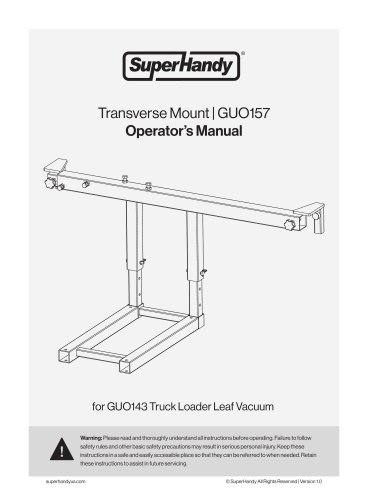

Transverse Mount | GUO157 Operator’s Manual for GUO143 Truck Loader Leaf Vacuum Warning: Please read and thoroughly understand all instructions before operating. Failure to follow safety rules and other basic safety precautions may result in serious personal injury. Keep these instructions in a safe and easily accessible place so that they can be referred to when needed. Retain these instructions to assist in future servicing. superhandyus.com © SuperHandy All Rights Reserved | Version 1.0

Open the catalog to page 1

Part List Base Frame

Open the catalog to page 2

Assembly Recommended Tools 12mm Open-end Wrench 13mm Open-end Wrench 19mm Open-end Wrench 1. Remove the two D-pins from mount arm, then insert base frame into mount arm, and secure it with the two D-pins that were removed.(Fig.01) Note: There are three hole positions to choose from, You can select the appropriate ﬁxing hole position based on the height of their truck for optimal adaptation. Base Frame

Open the catalog to page 3

2. Slide telescoping segment laterally to the desired position, then secure it by fastening the four M12x25 bolts into mount arm. (The position of telescoping segment is adjustable.) (Fig.02) Telescoping Segment M12x25 Bolt Mount Arm Fig. 02 3. Remove the two hand bolt from transverse mount，mount transverse mount onto the truck, then thread the removed hand bolts into transverse mount. (Fig.03) Hand Bolt

Open the catalog to page 4

4. Secure the leaf vacuum to transverse mount t using 4 M8x65 bolts and 4 M8 nuts (Fig.04)

Open the catalog to page 5

Thank you for supporting our brand! Great Circle USA Support Line: 1-866-493-0524 [email protected] www.superhandyus.com Follow us on social media @SuperHandy
