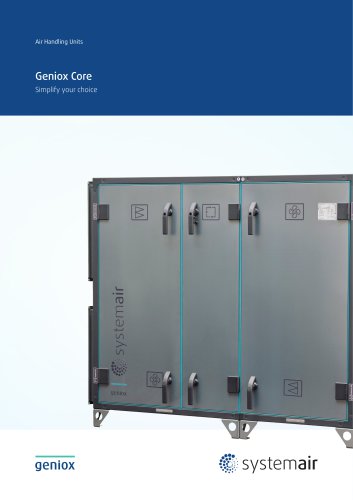

Geniox Core Simplify your choice geniox systemair

Geniox Core Simplify your choice Get the energy-efficient performance of Geniox with a short build length and fast delivery. The flexible and compact Geniox Core makes it easy to fit the unit into small spaces. Components such as dampers and heating or cooling coils can be installed externally, in the duct where there is room, keeping the unit itself compact. Geniox Core is easy to select, install, and maintain. Choose with or without the Systemair Access control system. Easy selection. Fast delivery!

Geniox Core characteristics Geniox Core is part of the Geniox family, based on Systemair’s renowned technology and over 40 years of experience with air handling units. Easy to select, install, and maintain. Geniox Core is a modular standard unit available in 7 sizes with airflows ranging from 750–17,500 m³/h (0.2–4.9 m³/s). Compact and flexible Geniox Core has a small footprint. We have made the unit as short as possible and combined it with external dampers, and external heating and cooling coils to make it fit in small spaces. Pre-configured You can select Geniox Core in SystemairCAD where...

Geniox Core is available as a knock-down-ready version, meaning the unit is prepared for disassembly and reassembly. Suitable for situations where the unit needs to be transported through narrow spaces, such as doorways. Watch our instructional videos on the Geniox Core in the knock-down-ready version. Geniox Core | Systemair 5

Geniox Core features 7 sizes with airflows: 750-17.500 m3/h (0,2-4,9 m3/s) Panel filter Coarse 65% (G4) or ePM10 60% (M5) as prefilter. Dampers comply with tightness class 4 C according to EN1751 The dampers have counter rotation, aerodynamically shaped damper blades made of aluminum, which ensures a low pressure loss when open. Duct mounted for indoor installation and mounted in the air handling unit for outdoor installation. High-performance heat exchanger with rotor In all types, condensation, hybrid, or sorption, and an efficiency up to 87%. Counter flow heat exchanger with an efficiency...

High-performance plug fans with ec motors IE5, made from recyclable composite material, with high efficiency, excellent regulation properties and low sound power level. Can be delivered as heating coil for water or electric heating, cooling coil for water or DX cooling, and change-over coil for water. Duct mounted for indoor installation and mounted in the air handling unit for outdoor installation. Duct mounted for indoor installation and mounted in the air handling unit for outdoor installation. Choose from the following roof types: rubber sheeting roof, PVC roof, steel profile roof, flat steel...

Indoor installation Geniox Core has a small footprint without compromising energy efficiency. Dampers, heating or cooling coils, and sound attenuators are placed outside the air handling unit, which provides you with a number of flexible solutions. 8 Systemair | Geniox Core These flexible solutions make it possible for you to • place the outdoor air damper directly at the outdoor intake, which means you avoid drawing cold air through the building. • place the heating or cooling coil where it is most beneficial to the water supply and the possibility for service. • choose a cooling coil with higher...

You can have all the components mounted inside the air handling unit and have everything in one place on a single base frame. This gives you a clean and simple expression on the roof. Or you can choose to have the heating and cooling coil placed inside the building. These flexible solutions make it possible for you to • place the heating or cooling coil inside the building, which means you do not need water supply on the roof and thus reduce the risk of frost bursts. • service and monitor the coils inside the building. • save costs by placing the coil where the water supply is easy to connect...

Indoor installation Rotary heat exchanger Outdoor installation Rotary heat exchanger Counter flow heat exchanger A = Geniox Core B = Damper C = Heating coil 10 Systemair | Geniox Core

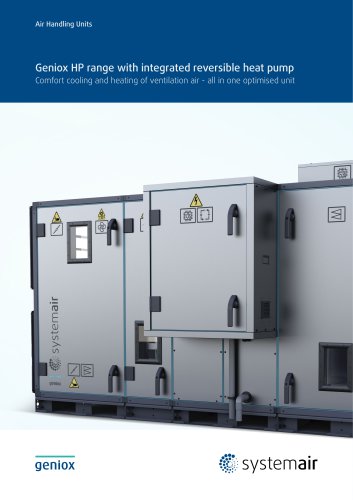

Geniox HP DF (Defrost Free) More information about the integrated reversible heat pump can be found in the Systemair Geniox HP brochure. Design your air handling unit Geniox offers countless combination options. The most popular combinations are illustrated herer. The dimensions on page 10 and 11 are for guidance only. The exact values and combinations are calculated in SystemairCAD. * Heat Pump Section ** Including base frame 118 or 218 mm *** Use the SystemairCAD configurator to define a suitable design through many options to get the final dimensions The Geniox Core ventilation unit can now...

Systemair Access Control system Simplifies connection, configuration and control Installed in our air handling units (AHUs), Systemair Access is a user-friendly control solution which makes it easier than ever for you to get the best performance from your AHUs. Explore and utilise the full functionality using the NaviPad control panel, supplied as an option with Geniox Core AHUs, or via our Access Connect app on your smartphone or tablet. By operating your AHUs efficiently you also gain control over your energy consumption and operating costs. User-friendly interface (UI) Simple menu structure...

Wireless communication makes Access even more convenient Install the Access Connect app on your device and you don’t need to access the AHUs physically to interact with them. Connect directly to the control unit in the AHU, or via the building’s network. Download our Access Connect app Choose the device you prefer ACCESS CONNECT by Systemair Robust design Access NaviPad is developed specifically for industrial use - simple to use, yet robust and durable. IPS display IPS based 7” touch display with high contrast, wide viewing angles and clear visibility. Press Home button to view AHU dashboard...

• Great user experience with intuitive menu navigation and configuration wizard • Installation and commissioning truly plug and play • Integrated support for BMS/SCADA using Modbus and BACnet communication • Prepared for easy connection to Systemair Connect Cloud solution • Wireless Communication Access Designed by Systemair Designed specifically for easy, quick and compact installation in Systemair air handling units. BACnet native integrated in the application provides rich functionality and a user friendly graphical user interface. Connectors for external components All connectors for external...
