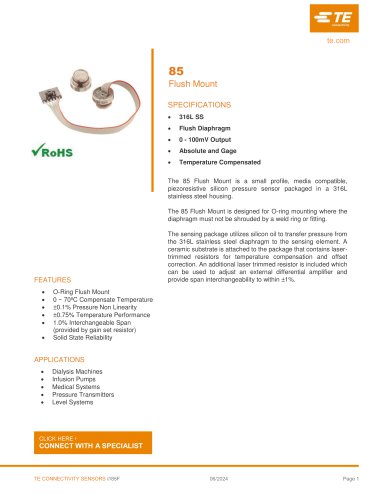

• Flush Diaphragm • Temperature Compensated The 85 Flush Mount is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The 85 Flush Mount is designed for O-ring mounting where the diaphragm must not be shrouded by a weld ring or fitting. The sensing package utilizes silicon oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. A ceramic substrate is attached to the package that contains laser-trimmed resistors for temperature compensation and offset correction. An additional laser trimmed resistor is included which can be used to adjust an external differential amplifier and FEATURES provide span interchangeability to within ±1%. • O-Ring Flush Mount • 1.0% Interchangeable Span (provided by gain set resistor) • Solid State Reliability • Dialysis Machines • Infusion Pumps • Medical Systems • Pressure Transmitters • Level Systems

Flush Mount Zero Pressure Output Pressure Non Linearity Pressure Hysteresis Repeatability Input Resistance Output Resistance Temperature Error - Span Temperature Error - Offset Thermal Hysteresis - Span Thermal Hysteresis - Offset Long Term Stability - Span Long Term Stability - Offset Supply Current Output Load Resistance Insulation Resistance (50Vdc) Output Noise (10Hz to 1kHz) Response Time (10% to 90%) Pressure Overload Pressure Burst Compensated Temperature Operating Temperature Storage Temperature Media - Pressure Port Liquids and gases compatible with 316/316L Stainless Steel Notes 1....

Flush Mount VEN TUBE .06! 1.6 G.D (GAGE DEVICES ONLYI STRAIN RELIEF RIBBON CABLE. 26 AWG [C ND1R # I w/RED STRIPEJ CONNECTOR, FEMALE DIAPHRAGM SURFACE) VIEW SHOWN W/O CAELz COMP BOARD

Flush Mount RECOMMENDED MOUNTING DIMENSIONS Dimensions are in inches APPLICATION SCHEMATIC
