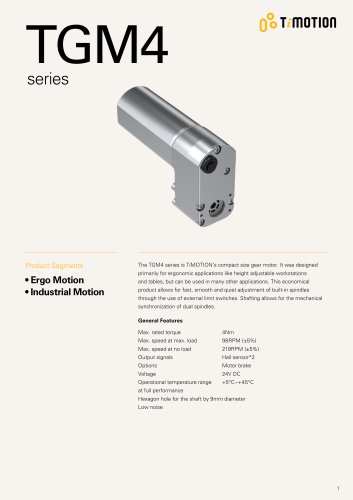

• Ergo Motion • Industrial Motion The TGM4 series is TiMOTION's compact size gear motor. It was designed primarily for ergonomic applications like height adjustable workstations and tables, but can be used in many other applications. This economical product allows for fast, smooth and quiet adjustment of built-in spindles through the use of external limit switches. Shafting allows for the mechanical synchronization of dual spindles. General Features Max. rated torque Max. speed at max. load Max. speed at no load Output signals Options Voltage Operational temperature range at full performance Hexagon hole for the shaft by 9mm diameter Low noise

Standard Dimensions - Standard Dimensions - Typical Current (A) Typical Speed (RPM, ±5%) Hall Sensor Output No Load With Load No Load With Load Magnet No Load With Load 1 Please refer to the approved drawing for the final authentic value. 2 The current & speed in table and diagram are tested with TiMOTION control boxes, and there will be around 10% tolerance depending on different models of the control box. (Under no load condition, the voltage is around 32V DC. At rated load, the voltage output will be around 24V DC)

Motor Speed (3800RPM) Speed vs. Torque Load 180 160 140 Current vs. Torque Load 3.5 A 3.0 Performance Data (24V DC Motor)

Motor Speed (2200RPM) Speed vs. Torque Load 100 90 80 Current vs. Torque Load 1.8 B Performance Data (24V DC Motor)

Motor Speed (5200RPM) Speed vs. Torque Load 250 Current vs. Torque Load 7.0 E Performance Data (24V DC Motor)

Load and Speed See page 2 Output Signals 0 = Without 2 = Hall sensor * 2 Brake 0 = Without 1 = Motor brake Plug 0 = Tinned leads 1 = DIN 6P, 90° 2 = Molex 8P Cable Length (mm) 0 = Straight, 1000 1 = Straight, 1500 2 = Straight, 2000 3 = Curly, 1000 External Limit Switch (TES2) XX = Number of output rotations (between13~17 & 25~35 rotations, factory preset)

1 The combinations of TGM and TBS are marked as "v" on the above table. 2 When choosing the combination of TBS2 / 3 and TGM7, the hexagonal drive shaft is not required. 3 When choosing the combination of TBS1 / 4 / 5 / 9 / 10 and TGM1 / 3 / 4, the extra order of hexagonal drive shaft is needed. 4 Please refer to the table below for the serial numbers and the dimensions of the component. Hexagonal drive shaft The user is responsible for determining the suitability of TiMOTION products for a specific application. TiMOTION products are subject to change without prior notice.
