TD5/PV
TD5/PV

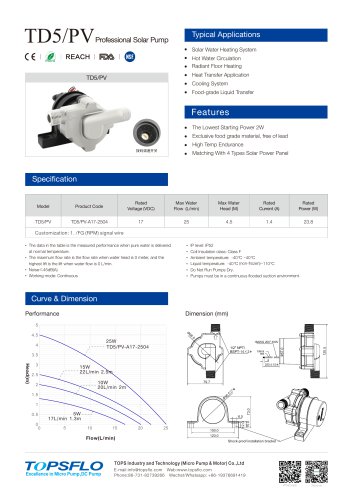

The document provides specifications for the TD5/PV professional solar pump, model TD5/PV-A17-2504. Key dimensions include a diameter of 68.0 mm and a 1/2" NPT/BSPT-14×2 fitting. The pump features a shock-proof installation bracket and customization options for RPM signal wire.
The pump operates at a rated voltage of 17 VDC and a current of 1.4 A, with a maximum water flow of 25 L/min and a maximum head of 4.5 meters. The rated power is 23.8 W, with a lowest starting power of 2 W. The pump is designed to be noise-efficient with a noise level ≤45dB(A) and operates continuously with an IP level of IP52 and coil insulation class F.
The pump is made from exclusive food-grade material, free of lead, and can endure high temperatures. It is compatible with four types of solar power panels. The ambient temperature range is -40 to 40°C, and the liquid temperature range is -40 to 110°C.
Typical applications include solar water heating systems, hot water circulation, radiant floor heating, heat transfer applications, cooling systems, and food-grade liquid transfer.
The pump should not be run dry and must be in a continuous flooded suction environment. The data provided is based on performance with pure water at normal temperature.
For further inquiries, contact TOPS Industry and Technology (Micro Pump & Motor) Co., Ltd via email at [email protected] or phone at +86-731-82739266.
Catalog excerpts
Professional Solar Pump • Solar Water Heating System • Radiant Floor Heating • Heat Transfer Application • Cooling System • Food-grade Liquid Transfer • The Lowest Starting Power 2W • Exclusive food grade material, free of lead • High Temp Endurance • Matching With 4 Types Solar Power Panel Specification Model • The data in the table is the measured performance when pure water is delivered at normal temperature. • The maximum flow rate is the flow rate when water head is 0 meter, and the highest lift is the lift when water flow is 0 L/min. • Working mode: Continuous • Coil Insulation class: Class F • Pumps must be in a continuous flooded suction environment. Curve & Dimension Performance Excellence in Micro Pump,DC Pump TOPS Industry and Technology (Micro Pump & Motor) Co.,Ltd E-mail:[email protected] Web:www.topsflo.com Phone:86-731-82739266 Wechat/Whatsapp: +86-19376691419 IHP |||| Whatsapp Wechat
Open the catalog to page 1All TOPS INDUSTRY AND TECHNOLOGY CO., LIMITED (TOPSFLO catalogs and technical brochures
