3MP-based Display for Digital Mammography
3MP-based Display for Digital Mammography
The document introduces the TOTOKU MS31i2, a 3MP-based digital mammography display utilizing Independent Sub-pixel Drive (ISD) technology. This technology allows the display to perform at or above the level of traditional 5MP displays, offering enhanced image quality and resolution for digital mammography.
The MS31i2 features a 21.3-inch TFT Monochrome IPS LCD panel with a native resolution of 1536 x 2048 pixels, which can be enhanced to 1536 x 6144 sub-pixels using ISD technology. It offers a contrast ratio of 900:1 and a maximum luminance of 1450 cd/m². The display supports up to 1276 shades of gray simultaneously, providing high precision in grayscale imaging.
The ISD technology enhances resolution by driving each sub-pixel independently, achieving three times the resolution enhancement. The display includes a special AR coating to reduce glare and improve focus, noise reduction, contrast, and viewing angle. The luminance stabilizing system, λ-Sentinel II, ensures consistent luminance across the screen.
The display is calibrated to DICOM GSDF standards and includes features for remote grayscale checks and calibration. It is certified under various medical safety standards, including FDA 510(k) clearance for digital mammography use.
The MS31i2 includes a hardware pivot function, LED indicators, and utility software for enhanced convenience. It supports dual-link input and offers a pairing service to match display colors. The display is equipped with a USB hub and supports VESA mounting.
The TOTOKU MS31i2 redefines standards in digital mammography displays by offering superior resolution and image quality at a more affordable price point compared to traditional 5MP displays. Its advanced features and compliance with medical standards make it a reliable choice for breast cancer screening.
Catalog excerpts

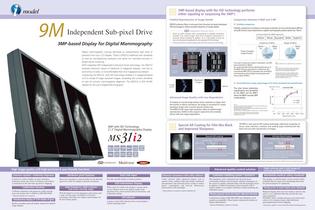

21.3" Digital Mammography Display World's FIRST 3MP-based Display for Digital l\ilanrimography Sub-pixel Drive TOTOKU supports Pink Ribbon activities.
Open the catalog to page 1
Independent Sub-pixel Drive 3MP-based Display for Digital Mammography Digital mammography viewing demands an extraordinarily high level of precision from your LCD display. Totoku's MS3H2 redefines new standards of care by over-delivering resolution and clarity for improved accuracy in breast cancer screening. With integrated ISD (Independent Sub-pixel Drive) technology, the MS3H2 exceeds resolution values of traditional 5 megapixel displays, and due to economies of scale, is more affordable than its 5 megapixel counterpart. Introducing the MS3H2, with ISD technology enables a 3 megapixel-based...
Open the catalog to page 2
21.3" Digital Mammography Display Graphics Cards TOTOKU's lineup of PCI Express graphics cards enable smooth transfer of Images. Collective support for display quality control Med/visore Series Constantly monitors displays' operational status and reports to the system administrator. Acceptance testing * Despite the hardware requirements for this graphics card, some computers or software and/or a combination of both may prevent the proper installation of this graphics card Please check with your dealer before you purchase it. The Medivisor Series is a series of software to collectively support...
Open the catalog to page 3All TOTOKU catalogs and technical brochures
