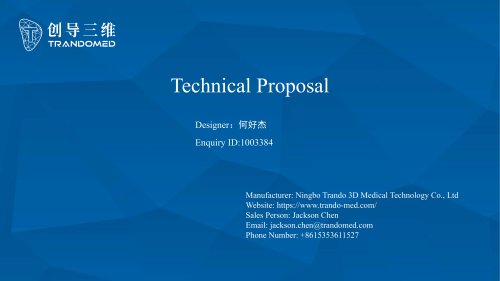

Technical Proposal Designer：何好杰 Enquiry ID:1003384 Manufacturer: Ningbo Trando 3D Medical Technology Co., Ltd Website: https://www.trando-med.com/ Sales Person: Jackson Chen Email: [email protected] Phone Number: +86153536

Client's requirements Design effect Design details

02 Design effect The model is a neural blood vessel model. The model includes intracranial arteries, thoracic aorta, abdominal aorta, and radial artery. The model is placed on a frosted acrylic plate and fixed with silicone belts. Intracranial section: 5 Aneurysms. Aortic arch: Standard Type I arch; can be customized to Type II, Type III, or variant arches upon request Abdominal aorta: Simplified abdominal aorta, including standard arteries such as the renal arteries, iliac arteries, and femoral arteries Radial vessels: Simplified spatial radial vasculature, including standard arteries such as...

1. It is used for interventional intracranial training via radial artery; 2. It is used for interventional intracranial training via femoral artery; 3. It is used for simulating the plasticity and movement of catheters and guidewires.

03 Design details This model is a neural artery model. It includes the anterior cerebral artery, posterior cerebral artery, middle cerebral artery, anterior communicating artery, posterior communicating artery, internal carotid artery, basilar artery, vertebral artery, common carotid artery, subclavian artery, radial artery, ascending aorta, aortic arch, descending aorta, abdominal aorta, renal artery, iliac artery, and femoral artery. Anterior cerebral artery Basilar artery Posterior cerebral artery Middle cerebral artery Vertebral artery Common carotid artery Ascending aorta Brachia l artery...

03 Design details The image shows the overall dimension of the model. The neuro blood vessel model measures 922.5 mm in length and 410.5 mm in width; the base plate measures 950 mm in length and 320 mm in width.

03 Design details Inner diameter of blood vessels

03 Design details Size of Aneurysms: No 1: Neck 4.0m, Length*Width*Height 6.0*6.0*7.0 No 2: Neck 2.4m, Length*Width*Height 5.0*5.0*5.4 No 4: Neck 3.0m, Length*Width*Height 5.0*5.0*5.2 No 5: Neck 2.6m, Length*Width*Height 4.0*4.0*4.7

03 Design details Intervention diagram： Connect with hemostatic valve, 0-12F devices can be used for interventional procedures. Connect with Luer sheath, 0-5F devices can be used for interventional procedures.

03 Design details Loop circulation: Inlet pipeline Outlet pipeline

Silicone is a highly practical polymer material with properties such as being colorless, non-toxic, heat-resistant, antioxidant, flexible, and highly transparent. Therefore, silicone is the material chosen for model printing. Beijing7.KGX Jtewarcfa disunite ofC'herarcnl TtchnoSosv (Material Lab) (Research Test Report) Silicone technical sheet Silicone technical sheet Material research test report

03 Design details Accessiries list

03 Design details Packaging and transportation This product is generally packed in aluminum case and transported in carton.

Thanks for your support to Trandomed. Manufacturer: Ningbo Trando 3D Medical Technology Co., Ltd Website: https://www.trando-med.com/ Sales Person: Jackson Chen Email: [email protected] Phone Number: +8615353611527 Specialist for Designing 3D Printed Medical Simulators
