User Manual FB-A05

User Manual FB-A05

Product catalog summary

Unpacking the Phantom
The phantom is delivered in a custom wooden crate, almost fully assembled with legs and arms attached. The head is packed separately and should be attached after unpacking. Two people should lift the phantom using the plastic sheet provided.

Description
The Adult Full Body Phantom is a training tool for X-ray positioning and imaging, designed for radiology students and professionals. It is lightweight, durable, and features articulating joints for realistic human movement. The bones have a realistic structure and can be customized with different pathologies.

Assembly Instruction
The phantom requires minimal assembly, with the head needing attachment using four plastic screws provided. The limbs are pre-attached to the torso.

Anatomy
The phantom includes a full human body with 10 parts, featuring rotatable shoulders, movable joints, and detachable components. It includes detailed anatomical structures such as the skull, spine, ribcage, and various organs.

Design
The manual provides multiple views of the phantom, including front, perspective, lateral, and top views.

Technical Properties
The phantom's tissues have specific sound velocity, density, and attenuation properties. It includes thermal properties for bone-mimicking tissue and HU values for various tissue types.

Materials Used
The phantom is made from urethane-based soft resin for soft tissues and a ceramic-reinforced epoxy composite for synthetic bones.

Size and Weight
The phantom measures 69 inches and weighs approximately 83 lbs. The shipment size is 48 x 26 x 25 inches, weighing 180 lbs.

Included In Order
The package includes the full body phantom, a user manual, assembly instructions, a 2-year warranty, and unlimited customer service.

Handling the Phantom
Handle the phantom with care, preferably by two people, using proper gripping techniques. A stretcher is recommended for moving the phantom.

Scanning Instructions
The phantom can be scanned using standard protocols and positioned horizontally or vertically. Various techniques like anterior, lateral, and posterior can be performed.

Storage and Handling
Store the phantom away from direct UV light and in a dry, dark place when not in use. Covering it with a plastic sheet is recommended.

Cleaning
The phantom is water-resistant and can be cleaned with water or soapy water. It is resistant to chemicals, but testing on a small area is advised before using strong solvents.

FAQs
For additional FAQs, refer to the provided link on the True Phantom website.

Catalog excerpts

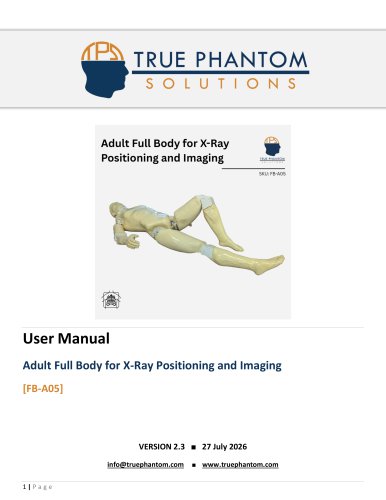

TRUE PHANTOM SOLUTIONS User ManualAdult Full Body for X-Ray Positioning and Imaging [FB-A05]

Open the catalog to page 1

TRUE PHANTOM SOLUTIONS INC.

Open the catalog to page 2

TRUE PHANTOM SOLUTIONS INC. Unpacking the phantom The phantom comes secured in a custom wooden crate and arrives almost fully assembled, with the legs and arms already attached to the torso. For packing purposes, the head comes separately and should be attached once the phantom is removed from the crate. The phantom is wrapped in a large, durable plastic sheet that should be used to lift the phantom out of the crate. Please ensure that two people perform the lift - one person holding the wrap from the shoulder side and the other from the leg side.

Open the catalog to page 3

TRUE PHANTOM SOLUTIONS INC. Description This Adult Full Body Phantom is an advanced X-ray positioning and imaging training tool, designed to enhance the learning experience for both students and professionals in the field of radiology. Its lightweight construction facilitates easy transport and repositioning, allowing users to adjust the phantom into a variety of positions required for different X-ray techniques. Crafted from durable synthetic materials, this phantom can withstand repeated use, making it an ideal tool for continuous practice without the risk of radiation exposure to patients...

Open the catalog to page 4

TRUE PHANTOM SOLUTIONS INC. FB-A05 | User Manual The phantom comes almost fully assembled with the legs and limbs already being fully attached to the torso. For packing purposes, the head comes detached and it requires assembly prior to using the phantom. This can be done by positioning the head in the neck brackets and using four plastic screws that come together with the phantom. Anatomy - Liver (with Ligaments & Bile Ducts) - Large and Small Intestines - Prostate Adult Arms - Elbow Joints - Fingers Adult Legs - Knee Joints Full Human Body (10 Parts) Foam Body Material Rotatable Shoulders (360°...

Open the catalog to page 5

TRUE PHANTOM SOLUTIONS INC. Front View Lateral View Perspective View

Open the catalog to page 6

TRUE PHANTOM SOLUTIONS INC. FB-A05 | User Manual Attenuation Measured at 2.25 MHz [dB/cm] Speckles (liver, kidneys, etc.) Thermal Properties of Bone-Mimicking Tissue Thermal Volumetric Specific Thermal Conductivity Heat Capacity Diffusivity Specific Heat

Open the catalog to page 7

TRUE PHANTOM SOLUTIONS INC. HU Values of the Tissue Mimicking Materials Tissue Type Trabecular Bone Cortical Bone Vena Cava 80 (Tissue Part), -1000 (Air Filled Part) Rectum Wall

Open the catalog to page 8

TRUE PHANTOM SOLUTIONS INC. FB-A05 | User Manual 13 Sigmoid Colon Wall 100 18 Large and Small Intestines 80 (Tissue Part), -1000 (Air Filled Part) Soft tissue and organs: Composition of urethane-based soft resin Synthetic bones: Patented ceramic-reinforced epoxy-based composite material Phantom Size: 69 Inches, Weight: 83 Lbs (approx.). Shipment Size: 48 x 26 x 25 Inches, Weight: 180 Lbs (approx.) Adult Full Body Phantom User Manual/Assembly Instructions 2-Year Warranty & Unlimited Customer Service

Open the catalog to page 9

TRUE PHANTOM SOLUTIONS INC. FB-A05 | User Manual • Handle with Care: When lifting, carrying, or moving the phantom, use caution to avoid damage. • Two-Person Handling: We recommended that two individuals handle the phantom together, ensuring secure and controlled movement. • Positioning the Phantom: While moving the limbs of the phantom be cautious to avoid any damage to joints/connectors. • Proper Gripping Technique: Hold the phantom firmly by its torso to maintain stability. Avoid any pulling or gripping of the arms, legs, or head. • Moving the phantom: We suggest the use of a stretcher for...

Open the catalog to page 10

TRUE PHANTOM SOLUTIONS INC. FB-A05 | User Manual TRUE PHANTOM SOLUTIONS INC. FB-A05 | User Manual • The phantom is made of urethane-based material and should be protected from direct exposure to any intense UV light. • The experiments conducted on the phantom can be performed in a sunny lab, but leaving the phantom under direct sunlight for weeks or months is not recommended. If the phantom is not in use, we strongly recommend storing it in a dry and dark place or covering it with a plastic sheet/foil. • The phantom is water-resistant and can be cleaned after use. It is ideal for cleaning it...

Open the catalog to page 11

TRUE PHANTOM SOLUTIONS INC. FAQs For other FAQs please refer here: https://www.truephantom.com/faq/
