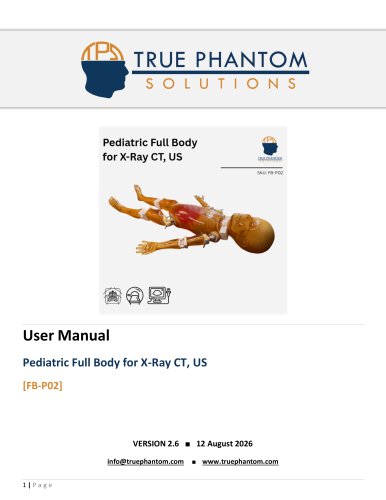

TRUE PHANTOM SOLUTIONS User ManualPediatric Full Body for X-Ray CT, US [FB-P02] VERSION 2.6 ■ 12 August 2026 [email protected] ■ www.truephantom.com

TRUE PHANTOM SOLUTIONS INC.

TRUE PHANTOM SOLUTIONS INC. Unpacking the phantom The phantom comes secured in a custom wooden crate and arrives fully assembled, with the legs, arms and head already attached to the torso. The phantom is wrapped in a large, durable plastic sheet that should be used to lift the phantom out of the crate. Please ensure that two people perform the lift - one person holding the wrap from the shoulder side and the other from the leg side.

TRUE PHANTOM SOLUTIONS INC. Description 4-Year-old Pediatric Full Body Phantom is an X-Ray/CT and US-compatible training product. It is primarily used to train various patient positioning techniques. Often purchased by medical schools and teaching hospitals to train their radiology students and other medical professionals. The design of this phantom is based on the model of a 4-year-old child 40″ (102 cm) in height. This phantom is a life-size, full-body anthropomorphic phantom with organs and bones constituted in 10 body parts. The phantom weighs about 20 kg. Other uses include visual evaluation...

TRUE PHANTOM SOLUTIONS INC. FB-P02 | User Manual Pediatric Full Body Realistic Body Tissue Shoulders Rotatable 360 Degrees Around and 180 Degrees Sideways Moveable Hip Joints, Knees, and Elbows Detachable Head, Torso, and Limbs Customizable with Different Pathologies (Lesion, Tumor, Infection, etc.) Transparent or Skin-Colored Appearance Pediatric Human Head - Gray Matter Pediatric Human Torso - Pelvis Torso Organs - Liver (with Ligaments & Bile Ducts) - Large and Small Intestines Pediatric Human Arms - Elbow Joints Pediatric Human Legs - Knee Joints

TRUE PHANTOM SOLUTIONS INC. Front View Lateral View Perspective View

TRUE PHANTOM SOLUTIONS INC. FB-P02 | User Manual Attenuation Measured at 2.25 MHz [dB/cm] Speckles (liver, kidneys, etc.)

TRUE PHANTOM SOLUTIONS INC. FB-P02 | User Manual Thermal Properties of Bone-Mimicking Tissue Thermal Volumetric Specific Thermal Conductivity Heat Capacity Diffusivity Specific Heat HU Values of the Tissue Mimicking Materials Tissue Type Body Tissue Brain Tissue Trabecular Bone Cortical Bone Vena Cava 80 (Tissue Part), -1000 (Air Filled Part)

TRUE PHANTOM SOLUTIONS INC. Rectum Wall Sigmoid Colon Wall Large and Small Intestines 80 (Tissue Part), -1000 (Air Filled Part)

TRUE PHANTOM SOLUTIONS INC. Materials Used Soft tissue and organs: Composition of urethane-based soft resin Synthetic bones: Patented ceramic-reinforced epoxy-based composite material Size and Weight of the Phantom Phantom Size: 40 x 8 x 27 Inches, Weight: 40 Lbs (approx.). Shipment Size: 32 x 23 x 13 Inches, Weight: 99 Lbs (approx.) Included In Order Pediatric Full Body Phantom User Manual/Assembly Instructions 2-Year Warranty & Unlimited Customer Service Hard Carry/Storage Case Handle with Care: When lifting, carrying, or moving the phantom, use caution to avoid damage. Two-Person Handling:...

TRUE PHANTOM SOLUTIONS INC. FB-P02 | User Manual The phantom is fabricated based on the anatomy of the real human body. It can be scanned per the standard protocols used while positioning a real person. The phantom can be put on horizontal and vertical positions for scanning purposes. Anterior, Lateral, and Posterior techniques can also be performed. • The phantom is made of urethane-based material and should be protected from direct exposure to any intense UV light. • The experiments conducted on the phantom can be performed in a sunny lab, but leaving the phantom under direct sunlight for weeks...

TRUE PHANTOM SOLUTIONS INC. FB-P02 | User Manual • The phantom is water-resistant and can be cleaned after use. It is ideal for cleaning it either with water or with soapy water. It is also quite resistant to chemicals, but if stronger solvents are meant to be used with the phantom, we recommend doing a small test on the bottom part of the neck or legs. The phantom should be placed on its belly, and the chosen solvent can be applied on a small, selected surface of the phantom for a few hours. If there is no visible effect on the phantom's surface, it is safe to assume that the phantom is resistant...
