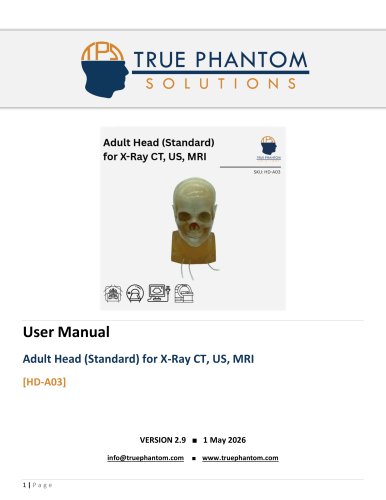

TRUE PHANTOM SOLUTIONS User ManualAdult Head (Standard) for X-Ray CT, US, MRI [HD-A03] VERSION 2.9 ■ 1 May 2026

TRUE PHANTOM SOLUTIONS INC.

TRUE PHANTOM SOLUTIONS INC. Description Adult Head (Standard) phantom is designed based on an average human male head and is made of realistic tissue mimicking materials suitable for Ultrasound, MRI, and X-Ray/CT applications. The brain parenchyma inside of the skull phantom is made of an ultra-soft polyurethane-based material that mimics soft tissue, and its anatomical shape was created based on the optical scan of an average human brain model used in the anatomy class for medical students. The materials used to build the phantom are stable over time, and they do not dry out. The skull bone...

TRUE PHANTOM SOLUTIONS INC. Anatomy Skull Brain -Grey Matter -Brain Ventricles -Brain Tumor -Falx Cerebri -Brain Vessels -One Bifurcation -Vessels Connected with the Neck Alignment Markings Acoustically Correct Skin-Mimicking Material Front View Lateral View Perspective View

TRUE PHANTOM SOLUTIONS INC. HD-A03 | User Manual Step-by-Step Instructions A. Begin filling slowly. - Using a syringe or a very low water flow, gently pour water into the ventricle opening until it reaches the top. B. Seal and reposition the head. - Once the ventricle appears full, insert the plug into the opening. Carefully flip the head upside down, then tilt it left and right several times. This motion helps trapped air rise toward the opening. C. Unplug and check the water level. - Remove the plug. You will notice that the water level has dropped; this is normal and indicates that air has...

TRUE PHANTOM SOLUTIONS INC. HD-A03 | User Manual The phantom is fabricated based on the anatomy of real human head and it can be scanned in supine, prone and fowler's positions, more importantly, scanning can be performed from multi directions (as highlighted in the image below). • For ultrasound applications, this phantom can be scanned either by using ultrasonic gel or simply in a water tank. • For MRI applications, the artificial blood vessels can be filled with any common MRI contrast agents. Filling the phantom with blood-mimicking fluid • The phantom can be filled with most types of blood-mimicking...

TRUE PHANTOM SOLUTIONS INC. HD-A03 | User Manual Sound Density Attenuation Speckles Measured Thermal Properties of Bone-Mimicking Tissue Thermal Volumetric Specific Thermal Conductivity Heat Capacity Diffusivity Specific Heat

TRUE PHANTOM SOLUTIONS INC. HU Values of the Tissue Mimicking Materials Tissue Type Brain Tissue Trabecular Bone Cortical Bone Skin Tissue Materials Used Soft tissue and organs: Composition of urethane-based soft resin Synthetic bones: Patented ceramic-reinforced epoxy-based composite material Size and Weight of the Phantom Phantom Size: 12 x 9 x 7 Inches, Weight: 17 Lbs (approx.). Shipment Size: 23 x 14 x 10 Inches, Weight: 22 Lbs (approx.) Included In Order Adult Head (Standard) Phantom User Manual/Assembly Instructions 2-Year Warranty & Unlimited Customer Service Hard Carry Case 8|Page

TRUE PHANTOM SOLUTIONS INC. HD-A03 | User Manual • The phantom is made of urethane-based material and should be protected from direct exposure to any intense UV light. • The experiments conducted on the phantom can be performed in a sunny lab, but leaving the phantom under direct sunlight for weeks or months is not recommended. If the phantom is not in use, we strongly recommend storing it in a dry and dark place or covering it with a plastic sheet/foil. • The phantom is water-resistant and can be cleaned after use. It is ideal for cleaning it either with water or with soapy water. It is also...

TRUE PHANTOM SOLUTIONS INC. FAQs For other FAQs please refer here: https://www.truephantom.com/faq/
