True Phantom Solutions
User Manual TO-A02

User Manual TO-A02

Product catalog summary

Description
The Adult Cardiac-FAST Torso phantom is designed for ultrasound, X-Ray CT, and MRI imaging, focusing on the FAST protocol. It replicates the adult torso's intricacies, aiding practitioners in refining diagnostic skills, particularly in trauma scenarios. The phantom includes realistic bones and organs made from tissue-mimicking materials compatible with various imaging techniques. It features a hollow heart with major vessels that can simulate heart motion.

Anatomy
The phantom includes realistic bones such as the spine, ribcage, shoulders, clavicles, pelvis, and partial femur bones. Thoracic organs include a dynamic heart, trachea, and lungs. The heart features detailed structures like ventricles, atria, and major vessels. Abdominal organs include the diaphragm, liver, gallbladder, stomach, kidneys, spleen, pancreas, intestines, bladder, and prostate.

Beating Heart Features
The model includes a beating heart with cyclic motion, water-fillable chambers, and options for intravenous catheter insertion. It supports pulsatility from 0-240 BPM, variable pulse lengths, and arterial pressure outputs up to 430mmHg. It features user-friendly controls with a touchscreen display.

Pathologies
Pathologies simulated include internal hemorrhages (perihepatic, perisplenic, pericardial, and around the bladder), cholecystitis, aortic aneurysm, and colon lesions.

Design
The phantom is designed with multiple views including front, perspective, lateral, and top views to aid in comprehensive training.

Technical Properties
The phantom's tissues have specific sound velocities, densities, hardness, and attenuation properties. Materials include urethane-based soft resin for tissues and a ceramic-reinforced epoxy composite for bones.

Size and Weight
The phantom measures 34 x 18 x 10 inches and weighs approximately 88 lbs. The shipment size is 46 x 36 x 17 inches, weighing about 142 lbs.

Included In Order
The package includes the Adult Torso for Cardiac-FAST Phantom, an optional heart pump, user manual, a 2-year warranty, and a hard carry case.

Handling Instructions
The phantom can be scanned in various positions and techniques similar to a real human body.

Storage and Handling
Store the phantom away from direct UV light and in a dry, dark place when not in use.

Cleaning
The phantom is water-resistant and can be cleaned with water or soapy water. It is resistant to chemicals, but testing is recommended before using strong solvents.

FAQs
For additional FAQs, refer to the provided link.

Catalog excerpts

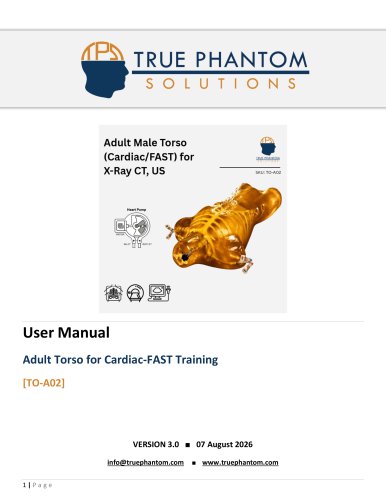

TRUE PHANTOMSOLUTIONS Adult Male Torso (Cardiac/FAST) for X-Ray CT, US User ManualAdult Torso for Cardiac-FAST Training [TO-A02] VERSION 3.0 ■ 07 August 2026 [email protected] ■ www.truephantom.com

Open the catalog to page 1

TRUE PHANTOM SOLUTIONS INC.

Open the catalog to page 2

TRUE PHANTOM SOLUTIONS INC. TO-A02 | User Manual The Adult Cardiac-FAST Torso phantom is for Ultrasound and X-Ray CT, and MRI imaging, with a primary focus on the FAST (Focused Assessment with Sonography in Trauma) protocol. This highly realistic phantom replicates the intricacies of the adult torso, providing practitioners with a tool for refining their diagnostic skills. Specifically tailored to replicate trauma scenarios and optional heart motion, it offers practitioners a lifelike environment to master the FAST protocol by identifying its various pathologies. The phantom is comprised of realistic...

Open the catalog to page 3

TRUE PHANTOM SOLUTIONS INC. TO-A02 | User Manual Realistic Bones: - Complete Spine - Complete Ribcage - Pelvis Structure - Partial Femur Bones Thoracic Organs: - Dynamic Heart with hollow four chambers and hollow blood vessels Realistic Heart with: - Right Ventricle - Moderator Band that runs from the anterior wall to the septum bridge - Left Ventricle - Papillary muscles to the anterior and posterior walls - Right Atrium - Right atrial appendage with distinct muscle structures - Left Atrium - Unique muscle structure to the appendage of the left atrium - Appendage Feature - Jugular vessels -...

Open the catalog to page 4

TRUE PHANTOM SOLUTIONS INC. TO-A05 | User Manual Beating heart model with the cyclic motion of the heart walls Water-fillable chambers with minimal air pockets Access to intravenous catheter insertion 0-240 BPM (Pulsatility) Variable Pulse Length (0-500ms) Arterial Pressure (Output up to 430mmHg) Two 3/8" CPC (HFCD17812) valved couplings (Inlet / Outlet) Intuitive user-friendly user interface + touchscreen display Internal Hemorrhages: - Around the Bladder: 61 ml Cholecystitis Aortic Aneurysm Lesions in the Colon

Open the catalog to page 5

TRUE PHANTOM SOLUTIONS INC. Front View Lateral View Perspective View

Open the catalog to page 6

TRUE PHANTOM SOLUTIONS INC. TO-A02 | User Manual TRUE PHANTOM SOLUTIONS INC. TO-A02 | User Manual Sound Density Organs with Speckles (liver, kidneys, etc.) Organs without Attenuation Measured at 2.25 MHz [dB/cm] Materials Used Soft tissue and organs: Composition of urethane-based soft resin Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

Open the catalog to page 7

TRUE PHANTOM SOLUTIONS INC. Size and Weight of the Phantom Phantom Size: 34 x 18 x 10 Inches, Weight: 88 Lbs (approx.). Shipment Size: 46 x 36 x 17 Inches, Weight: 142 Lbs (approx.) Included In Order Adult Torso for Cardiac-FAST Phantom Heart Pump (Optional) User Manual/Assembly Instructions 2-Year Warranty & Unlimited Customer Service Hard Carry Case Handling Instructions The phantom is fabricated based on the anatomy of the real human body. It can be scanned per the standard protocols used while positioning a real person. The phantom can be put on horizontal and vertical positions for scanning...

Open the catalog to page 8

TRUE PHANTOM SOLUTIONS INC. TO-A02 | User Manual TRUE PHANTOM SOLUTIONS INC. TO-A02 | User Manual • The phantom is made of urethane-based material and should be protected from direct exposure to any intense UV light. • The experiments conducted on the phantom can be performed in a sunny lab, but leaving the phantom under direct sunlight for weeks or months is not recommended. If the phantom is not in use, we strongly recommend storing it in a dry and dark place or covering it with a plastic sheet/foil. • The phantom is water-resistant and can be cleaned after use. It is ideal for cleaning it...

Open the catalog to page 9

TRUE PHANTOM SOLUTIONS INC. FAQs For other FAQs please refer here: https://www.truephantom.com/faq/
