Xprecia Prime Technical Specifications

Product catalog summary

Overview: The document provides detailed specifications and features of a coagulation analyzer designed for fast and reliable PT/INR testing. It highlights the device's accuracy, safety, portability, and ease of use.

Key Features:

Accuracy: The analyzer offers reliable results with automatic strip quality checks and correlates well with laboratory analysis.
Safety: Features include a test strip eject button for safe handling, Positive Patient Identification (PPID), and operator ID entry with lockout features.
Portability: The device is ergonomic, fits in the palm of your hand, and supports both WiFi and wired connections. It is powered by a rechargeable battery.
Ease of Use: The analyzer provides results in less than a minute, features user-friendly software and a touchscreen, and requires no reagents due to automatic calibration.

Technical Specifications:

Sample Type: Finger prick or venous blood with a volume of 8 µL.
Haematocrit Range: 25 — 55% inclusive.
Reporting Range: 0.8 — 8.0 INR.
Dimensions and Weight: 147 × 84 × 32 mm, 210 g.
Memory: Stores up to 1000 patient results.
Operating Conditions: Temperature range of 15°C — 32°C, relative humidity < 80%.
Storage Conditions: Temperature range of -20°C — 40°C, relative humidity < 75%.
Power Supply: Model GTM46161-165.0-USB, input 100 — 240 V~, 50 — 60 Hz, 0.45 A.
Connectivity: USB and WiFi (802.11b/g/n) with secure network requirements.
PC Requirements: WiFi adapter and spare USB port, with a web browser (excluding Internet Explorer).

Additional Information: The document includes contact details for Universal Biosensors and notes on trademark usage.

Catalog excerpts

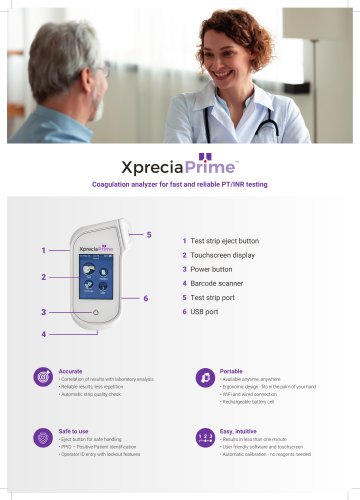

Xprecia Prime Technical Specifications-1

Xprecia Prime"Coagulation analyzer for fast and reliable PT/INR testing 1 Test strip eject button 5 Test strip port Accurate • Correlation of results with laboratory analysis • Reliable results, less repetition • Automatic strip quality check • Eject button for safe handling • PPID - Positive Patient Identification • Operator ID entry with lockout features • Results in less than one minute • User friendly software and touchscreen • Automatic calibration - no reagents needed

Open the catalog to page 1

Xprecia Prime Technical Specifications-2

Coagulation analyzer for fast and reliable PT/INR testing Relative humidity < 75% (without condensation) * coming soon LQC kit storage conditions Temperature 2°C — 8°C (35.6°F — 46.4°F) Power supply Model Input GTM46161-165.0-USB 100 — 240 V~, 50 — 60 Hz, 0.45 A Mains supply voltage fluctuation +/-10% Operating humidity 0 — 93% Operating air pressure 54 — 1060 hPa Note: The WiFi network must be secure Interface wireless (2.4GHz) PC requirements WiFi adapter (for WiFi connection) Note: Device must be connected to the same wireless network as the analyzer. Spare USB port (for USB connection) Note:...

Open the catalog to page 2

All Universal Biosensors Pty. Ltd. catalogs and technical brochures

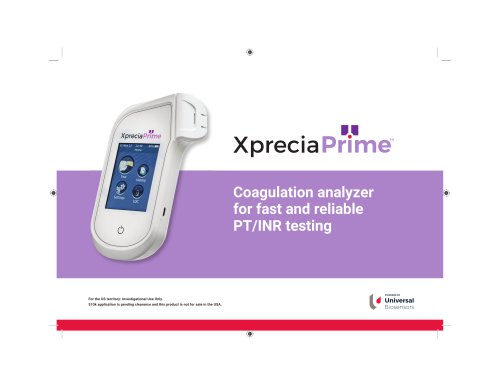

Xprecia Prime Brochure
