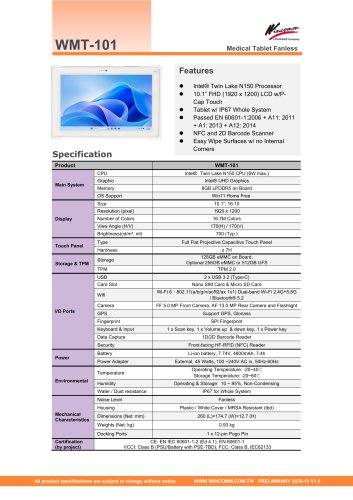

Product Overview:
The WMT-101 is a fanless medical tablet featuring an Intel® Twin Lake N150 CPU with a maximum power consumption of 6W. It includes Intel® UHD Graphics and 8GB LPDDR5 memory on board. The device supports Windows 11 Home Free.

Display:
The tablet has a 10.1-inch display with a 16:10 aspect ratio and a resolution of 1920 x 1200 pixels. It supports 16.7 million colors and offers a viewing angle of 170 degrees both horizontally and vertically. The brightness is rated at 700 nits.

Touch Panel:
It features a full flat projective capacitive touch panel with a hardness rating of ≥ 7H.

Storage & Security:
The device comes with 128GB eMMC storage, with options for 256GB eMMC or 512GB UFS. It includes TPM 2.0 for security.

I/O Ports:
The tablet includes 2 USB 3.2 Type-C ports, a Nano SIM card slot, and a Micro SD card slot.

Connectivity:
It supports Wi-Fi 6, Bluetooth® 5.2, GPS, and Glonass. It also includes a fingerprint sensor and NFC reader.

Camera:
The device is equipped with a 5.0 MP front camera and a 13.0 MP rear camera with autofocus and flashlight.

Power:
Powered by a 4800mAh Li-ion battery, it offers approximately 7.4 hours of operation. The power adapter is rated at 45 Watts.

Environmental Specifications:
The tablet operates in temperatures ranging from -20 to 40°C and can be stored between -20 to 60°C. It is IP67 rated for water and dust resistance.

Mechanical Characteristics:
The device is fanless, housed in a plastic cover that is MRSA resistant. It measures 260 x 174.7 x 12.7 mm and weighs 0.93 kg.

Certification:
It complies with CE, VCCI, FCC, and IEC62133 standards.

Features:
The WMT-101 includes NFC, a 2D barcode scanner, and easy-to-clean surfaces.

Options and Accessories:
Available options include Windows 11 IoT Enterprise, various plug types, a docking station, and 4G/5G module customization. The packing list includes the tablet unit, power adaptor, USB Type-C cable, and a hand strap.
