zhangjiagang Medi Medical Equipment Co., Ltd.

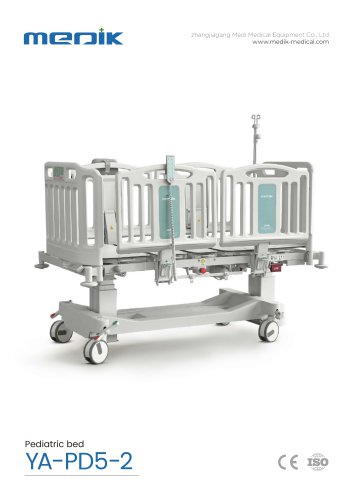

Height adjustment Section adjustment Reverse Trendelenburg PRODUCT INFORMATION Description Safety, attractive appearance, open and transparent environment are the most important features for a pediatric hospital bed. The YA-PD5-2 with two column structure to minimize the entrapment risk also easy for hygiene, elevated ABS railing and optional cartoon design not only provide great safety for children but also make them feel peaceful on bed. These child-friendly designs make it an ideal bed for PICU and pediatric care.

increase safety and facilitate cleaning Auto-regress to remove the pressure of the abdomen when adjusting the backrest Auto-counter to provide the patient from sliding onto foot end Foldable side rails and removable head/foot boards made of ABS Central brake system Emergency button • Nurse control • Weighing scale • Night light under the bed • Brake warning system • Battery backup • Built-in control system of side rail

REMOTE CONTROL SYSTEM 1 Nurse control Nurse control with multiple functions and locking button. Whole bed up Power display Return to previous step Select up Select down One button chair position Reverse Trendelenburg Function unlock button Reverse Trendelenburg Whole bed lower Leg section lower Electric CPR One button chair position lower Back section lower Auto-counter lower Hand remote control The remote control has a lock function to prevent accidental touches. Back section up/down Leg section up/down Auto-counter Hi-low Reverse Trendelenburg/Trendelenburg Electric CPR

MAIIN DETAILS COLUMN STRUCTURE The double-column structure can increase safety, prevent children from being pinched, and facilitate cleaning. FOOT SECTION Foot section can be lifted by gear. IV POLE Four provision holes for the IV pole around the bed. SIDE RAIL Four pieces of side rails with damper ,tuck-away type,adjusted through the buckle.

MAIIN DETAILS WEIGHING INDICATOR CONTROL PANEL There is a weighing display at the end of the bed, and it has a leaving bed alarm function. There is a built-in control panel on the guardrail at the end of the bed. ANGLE DISPLAY BED EXTENSION The bed extension is adjusted by a knob.

MAIIN DETAILS REMOVABLE HEAD AND FOOT PANEL WITH LOCKING DEVICE NO BRAKE WARNING FUNCTION When the bed stops but the brakes are not applied, the alarm will make sounds. BUMPER CASTORS Four bumper castors to protect the bed during transportation MANUAL CPR FUNCTION Manual CPR function on both sides of the bed for emergency situation.

MAIIN DETAILS EMERGENCY BUTTON WHICH CAN STOP ALL MOVEMENTS X-RAY BOX X-ray box on the back section for easy access. CASTORS Four dia 150 mm castors , central brake pedal on both sides of the bed.

mQrjiic www.medik-medical.com Knee section adjustment 0-30° Back section adjustment 0-70° Foot section adjustment 0-30° Reverse Trendelenburg /Trendelenburg 0-12° Address : No.3 Jinxiu Road,Jinfeng Industrial Zone,Jinfeng Town,Zhangjiagang,Jiangsu Province,China E-mail : [email protected]
